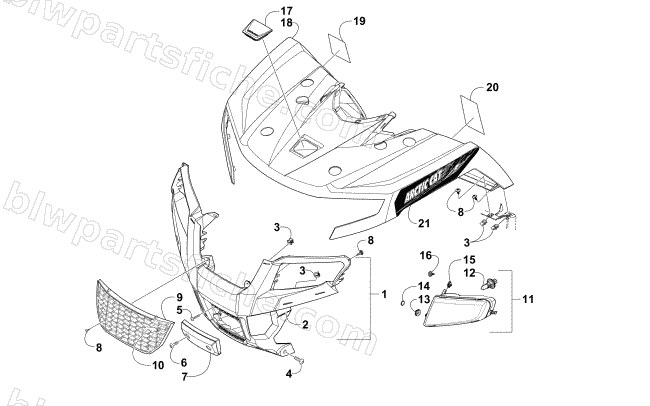

2015 Arctic Cat XR 700 XT — FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
2015 XR 700 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-753 | FASCIA,FRONT-W/REFLECTORS | 1 | $163.95 | |
| 2 | 4411-168 | REFLECTOR,FRONT-RH | 1 | $5.92 | |
| 2 | 4411-169 | REFLECTOR,FRONT-LH | 1 | $5.92 | |
| 3 | 1423-321 | CLIP,RETAINING | 1 | $0.54 | |
| 4 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 5 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 6 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 7 | 4406-584 | COVER,WINCH | 1 | $37.95 | |
| 8 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 9 | 4406-990 | GRILL,FRONT-151 ATV (13.5 mm TABS) | 1 | $20.63 | |
| 10 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 11 | 0509-102 | HEADLIGHT,HALOGEN/LED-RH (XR XT) | 1 | $169.95 | |
| 11 | 0509-103 | HEADLIGHT,HALOGEN/LED-LH (XR XT) | 1 | $169.95 | |
| 12 | 0409-182 | BULB,HEADLIGHT-H13 HALOGEN | 1 | $50.95 | |
| 13 | 4406-722 | GROMMET-RH | 1 | $2.88 | |
| 13 | 4406-723 | GROMMET-LH | 1 | $2.88 | |
| 14 | 1423-326 | O-RING,D:.116 ID: .924-EPDM (3-912) | 1 | $2.75 | |
| 15 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 16 | 2623-113 | SCREW,1" RND KNOB-M5X0.8X15MM LG | 1 | $3.71 | |
| 17 | 4406-784 | PLUG,ACCESS COOLING | 1 | $6.89 | |
| 18 | 5506-781 | FENDER,FRONT-VIBRANT RED METALLIC-ASSY | 1 | $909.95 | |
| 18 | 7506-144 | FENDER,FRONT-TRUE TIMBER HTC-ASSY | 1 | $1,013.95 | |
| 18 | 5506-777 | FENDER,FRONT-GO NAVY BLUE METALLIC-ASSY | 1 | $1,126.95 | |
| 19 | 4411-672 | R/B 6411-422 | 1 | $13.95 | |
| 20 | 4411-673 | DECAL,WARNING-FRONT FENDER-LH | 1 | $8.21 | |
| 21 | 4411-624 | DECAL,FRONT FENDER-VIBRANT RED-RH | 1 | $24.77 | |
| 21 | 4411-625 | DECAL,FRONT FENDER-VIBRANT RED-LH | 1 | $24.77 | |
| 21 | 4411-636 | DECAL,FRONT FENDER-CAMO-RH | 1 | $27.95 | |
| 21 | 4411-637 | DECAL,FRONT FENDER-CAMO-LH | 1 | $27.95 | |
| 21 | 4411-506 | DECAL,FRONT FENDER-NAVY BLUE-RH | 1 | $23.39 | |
| 21 | 4411-507 | DECAL,FRONT FENDER-NAVY BLUE-LH | 1 | $23.39 |
