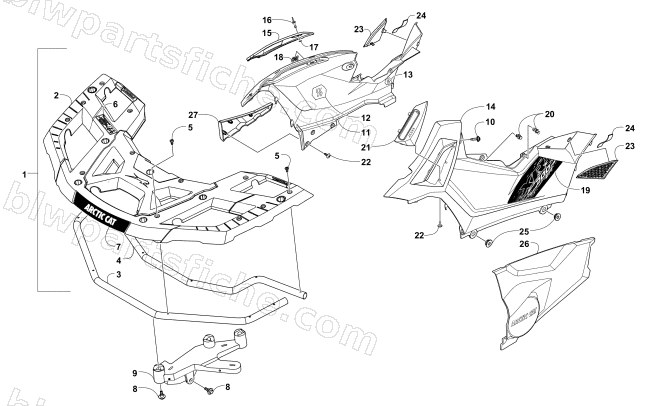

2015 Arctic Cat XR 700 XT — FRONT RACK AND SIDE PANEL ASSEMBLIES
2015 XR 700 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-840 | RACK-MOLDED-FRONT-ASSY | 1 | $324.95 | |
| 2 | 5506-672 | RACK,W/OVERMOLD | 1 | $224.95 | |
| 3 | 5506-671 | TUBE,RACK-OUTER PERIMETER-PTD BLK | 1 | $54.95 | |
| 4 | 5506-592 | TUBE,RACK-INNER PERIMETER-PTD BLK | 1 | $90.95 | |
| 5 | 1423-301 | SCREW,MACH-TSTRH M6-1.0X10 CL8.8 BLK W/ | 1 | $0.95 | |
| 6 | 4411-678 | DECAL,WARNING-FRONT RACK | 1 | $6.47 | |
| 7 | 4411-879 | DECAL,ARCTIC CAT-RACK | 1 | $16.49 | |
| 8 | 1423-280 | SCREW,SHOULDER-M8 X 12.7D X 12L | 1 | $3.85 | |
| 9 | 4406-626 | MOUNT,RACK FRONT-RH | 1 | $54.95 | |
| 9 | 4406-627 | MOUNT,RACK FRONT-LH | 1 | $54.95 | |
| 10 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 11 | 7506-048 | PANEL,SIDE-RH-VIBRANT RED MET-PTD-ASSY | 1 | $454.95 | |
| 11 | 7506-044 | PANEL,SIDE-RH-GO NAVY BLUE MET-PTD-ASSY | 1 | $405.95 | |
| 12 | 0412-838 | R/B 1412-108 | 1 | $62.95 | |
| 13 | 0412-852 | R/B 1412-114 | 1 | $46.95 | |
| 14 | 5506-881 | PANEL,SIDE-LH-VIBRANT RED METALLIC-PTD | 1 | $405.95 | |
| 14 | 7506-149 | PANEL,SIDE-LH-TRUE TIMBER HTC | 1 | $806.95 | |
| 14 | 5506-877 | PANEL,SIDE-LH-GO NAVY BLUE METALLIC-PTD | 1 | $324.95 | |
| 15 | 5506-921 | PANEL,PDM ACCESS-VIBRANT RED MET-PTD | 1 | $90.95 | |
| 15 | 7506-151 | PANEL,PDM ACCESS-TRUE TIMBER HTC | 1 | $32.95 | |
| 15 | 5506-919 | PANEL,PDM ACCESS-GO NAVY BLUE MET-PTD | 1 | $82.95 | |
| 16 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 17 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 18 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 19 | 4411-664 | DECAL,SIDE 700 EFI-VIBRANT RED-RH | 1 | $19.25 | |
| 19 | 4411-665 | DECAL,SIDE 700 EFI-VIBRANT RED-LH | 1 | $19.25 | |
| 19 | 4411-833 | DECAL,SIDE 700 EFI-CAMO-LH | 1 | $50.95 | |
| 19 | 4411-662 | DECAL,SIDE 700 EFI-NAVY BLUE-RH | 1 | $19.25 | |
| 19 | 4411-663 | DECAL,SIDE 700 EFI-NAVY BLUE-LH | 1 | $33.95 | |
| 20 | 1423-276 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.23 | |
| 21 | 2402-218 | GATE,SHIFT-AUTO-W/PARK | 1 | $6.89 | |
| 22 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 23 | 4406-710 | VENT,PLASTIC-RH | 1 | $4.13 | |
| 23 | 4406-711 | VENT,PLASTIC-LH | 1 | $4.13 | |
| 25 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 26 | 4406-579 | PANEL,ENGINE COVER-LH | 1 | $54.95 | |
| 27 | 4406-578 | PANEL,ENGINE COVER-RH (550/700) | 1 | $15.11 |
