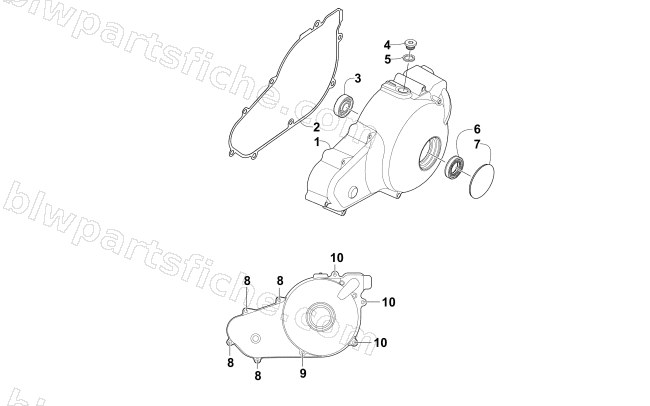

2016 Arctic Cat 1000 MUD PRO SE EPS — MAGNETO SIDE ENGINE COVERS
2016 1000 MUD PRO SE EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-151 | COVER,KURT,MAG-MACH | 1 | $133.95 | |
| 2 | 0830-132 | GASKET,MAGNETO COVER,VTWIN | 1 | $12.35 | |
| 3 | 0832-010 | BEARING,CONRAD-SC03A78C3 | 1 | $66.95 | |
| 4 | 0826-155 | PLUG,TDC INSPECTION | 1 | $10.97 | |
| 5 | 0830-015 | WASHER, CRUSH, 16 x 22 x 2 | 1 | $1.92 | |
| 6 | 0830-176 | SEAL,CAN,47X16X5.5 | 1 | $20.63 | |
| 7 | 0806-066 | CAP,MAGNETO COVER,VTWIN | 1 | $3.57 | |
| 8 | 8468-650 | SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK | 1 | $1.78 | |
| 9 | 8468-695 | SCREW,MACH-TSPNH M6X1.0X95 CL8.8 BLK | 1 | $2.75 | |
| 10 | 8468-665 | SCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLK | 1 | $1.23 |
