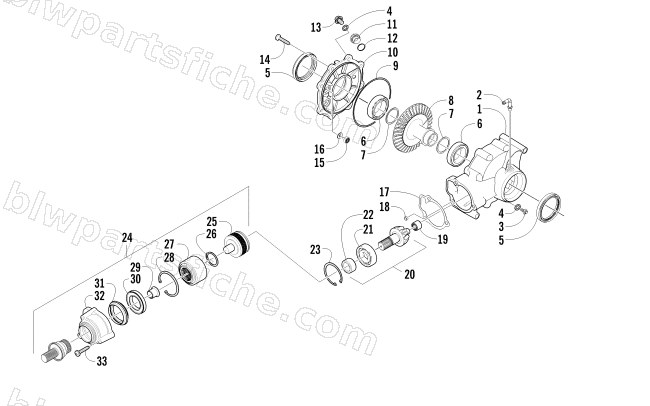

2016 Arctic Cat 1000 MUD PRO SE EPS — REAR DRIVE GEARCASE ASSEMBLY
2016 1000 MUD PRO SE EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2502-085 | GEARCASE,REAR-ASSY (3.1-H2-PTL) | 1 | $1,356.95 | |
| 1 | 1502-896 | HOUSING,GEARCASE-REAR MACH | 1 | $283.95 | |
| 2 | 2402-162 | FITTING,90 DEG BARB | 1 | $42.95 | |
| 3 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 4 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 5 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 6 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 7 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 7 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 7 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 7 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 7 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 8 | 1402-033 | GEAR, REAR (34 TOOTH) | 1 | $365.95 | |
| 9 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 10 | 1502-897 | COVER,GEARCASE-REAR MACH | 1 | $126.95 | |
| 11 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 12 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 | |
| 13 | 1402-211 | PLUG, OIL LEVEL | 1 | $20.63 | |
| 14 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 15 | 0402-326 | BUTTON,THRUST | 1 | $6.34 | |
| 16 | 0402-429 | SHIM,6.3X18X1.3 | 1 | $10.97 | |
| 16 | 0402-430 | SHIM,6.3X18X1.4 | 1 | $12.35 | |
| 16 | 0402-431 | SHIM,6.3X18X1.5 | 1 | $12.35 | |
| 16 | 0402-432 | SHIM,6.3X18X1.6 | 1 | $10.97 | |
| 16 | 0402-433 | SHIM,6.3X18X1.7 | 1 | $12.35 | |
| 17 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 18 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 19 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 20 | 1502-851 | GEAR,PINION (11T) SUBASSEMBLY | 1 | $220.95 | |
| 21 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 22 | 1402-977 | COLLAR,RETAINING | 1 | $49.95 | |
| 23 | 1423-067 | RING,RETAINING-INTL-65mm (DHO-62 ST ZDL) | 1 | $2.06 | |
| 24 | 1502-655 | SHAFT,INPUT-ASSY-TORQUE LIMITING 685FTLB | 1 | $1,260.95 | |
| 25 | 1502-564 | CARTRIDGE,CLUTCH | 1 | $599.95 | |
| 26 | 0423-799 | RING,RETAINING,EXTERNAL-PTL | 1 | $27.95 | |
| 27 | 1402-682 | BASKET,CLUTCH | 1 | $100.95 | |
| 28 | 0423-798 | RING,RETAINING,INTERNAL 68MM-PTL | 1 | $23.39 | |
| 29 | 1402-678 | BEARING,FLANGE,20X23X21.5-PTL | 1 | $30.95 | |
| 30 | 1402-677 | BEARING,BALL,16008 C3 40X68X9-PTL | 1 | $49.95 | |
| 31 | 1402-687 | SEAL,DUAL LIP,45X55X7 TC-PTL | 1 | $32.95 | |
| 32 | 1502-285 | HOUSING,INPUT-MACH | 1 | $231.95 | |
| 33 | 0423-834 | SCREW,SELF TAP-TSPH M8-1.25 X 78 | 1 | $9.59 |
