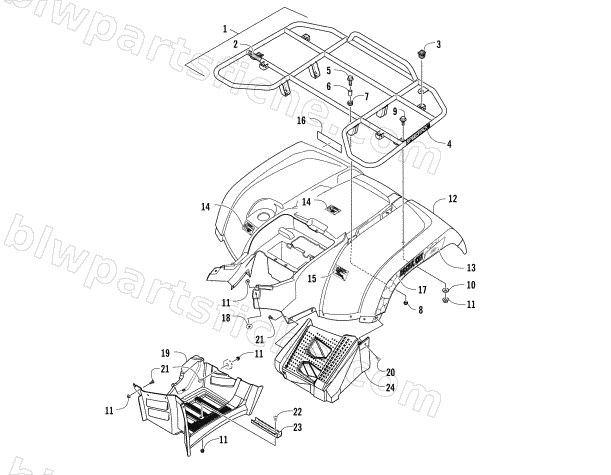

2016 Arctic Cat 1000 MUD PRO SE EPS — REAR RACK, BODY PANEL, AND FOOTWELL ASSEMBLIES
2016 1000 MUD PRO SE EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-317 | RACK,REAR-ASSEMBLY | 1 | $405.95 | |
| 2 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 5 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 6 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 7 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 8 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 9 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 10 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 11 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 13 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 13 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 14 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 15 | 4411-836 | DECAL,WARNING-TIRE PRESSURE | 1 | $6.47 | |
| 18 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 19 | 2506-856 | FOOTWELL,RH(TRV H2) | 1 | $156.95 | |
| 19 | 2506-857 | FOOTWELL,LH(TRV H2) | 1 | $156.95 | |
| 20 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 21 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 22 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 23 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 24 | 2416-326 | PANEL, FILLER-RH | 1 | $405.95 | |
| 24 | 2416-327 | PANEL, FILLER-LH | 1 | $405.95 |
