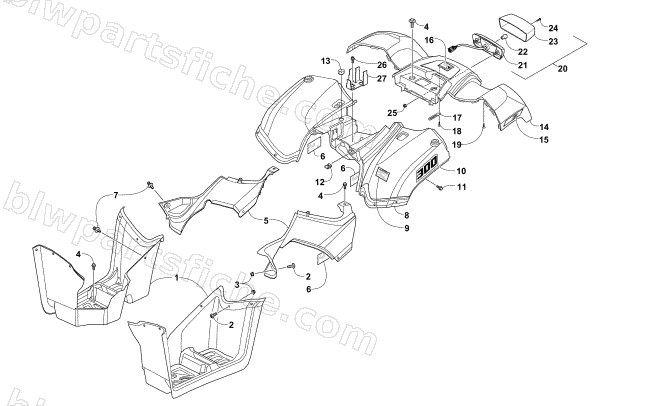

REAR BODY AND TAILLIGHT ASSEMBLY
2016 300 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-991 | MUDGUARD FLOOR-RH | 1 | $82.95 | |
| 1 | 3303-992 | MUDGUARD FLOOR-LH | 1 | $82.95 | |
| 2 | 3303-251 | SCREW SPECIAL 6*16 **900 C.2002.06.18 | 1 | $2.06 | |
| 3 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 4 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 5 | 3303-997 | COVER SIDE-RH | 1 | $47.95 | |
| 5 | 3306-227 | COVER ASSY SIDE-LH | 1 | $42.95 | |
| 6 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 7 | 3305-448 | CLIP,MUDGUARD | 1 | $2.33 | |
| 9 | 1411-805 | DECAL,WARNING-TIRE/LOAD (250) | 1 | $13.73 | |
| 11 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 12 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 13 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 15 | 1411-178 | REFLECTOR,REAR-RH | 1 | $13.73 | |
| 15 | 1411-179 | REFLECTOR,REAR-LH | 1 | $13.73 | |
| 16 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 17 | 3304-156 | CLIP 2*70 | 1 | $1.92 | |
| 18 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 19 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 20 | 3303-136 | LIGHT ASSY TAIL **(2) C.2004.04.02 | 1 | $74.95 | |
| 21 | 3303-422 | BASE COMP TAIL LIGHT | 1 | $47.95 | |
| 22 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 23 | 3303-421 | LENS TAIL LIGHT | 1 | $47.95 | |
| 24 | 3304-537 | TAPPING SCREW M4X35L | 1 | $2.33 | |
| 25 | 3305-396 | NUT FLANGE 6MM | 1 | $1.09 | |
| 26 | 3304-409 | BOLT WASHER 5*12 | 1 | $0.81 | |
| 27 | 3303-934 | STAY START MAG SW | 1 | $10.97 |
