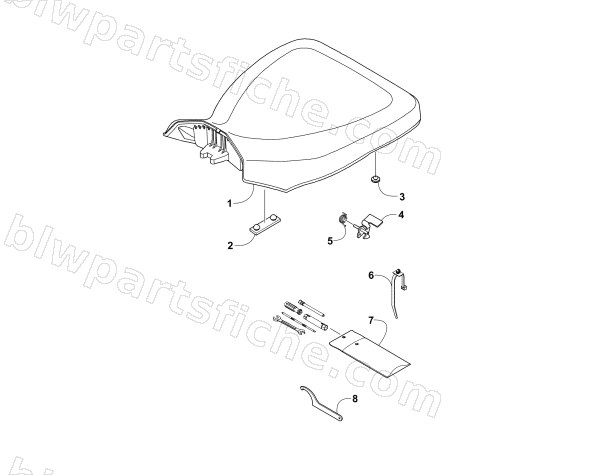

2016 Arctic Cat ALTERRA 400 — SEAT ASSEMBLY
2016 ALTERRA 400
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3306-458 | BUMPER,SEAT | 1 | $2.61 | |
| 4 | 1506-156 | LATCH,SEAT-WELDMENT | 1 | $30.95 | |
| 5 | 1406-592 | SPRING,LATCH | 1 | $1.78 | |
| 7 | 3305-913 | TOOL KIT | 1 | $54.95 | |
| 8 | 1441-797 | WRENCH,SPANNER | 1 | $0.00 |
