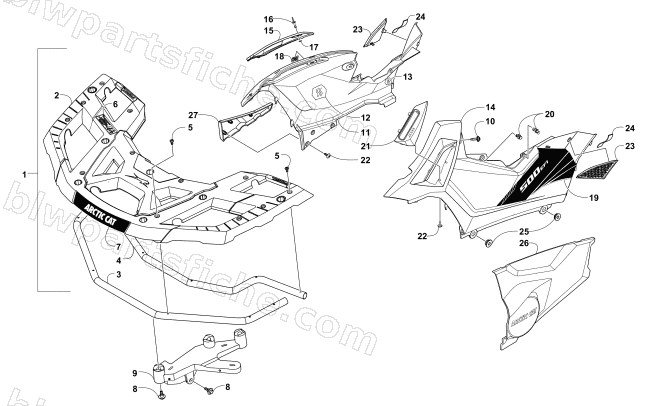

2016 Arctic Cat ALTERRA 500 XT EPS — FRONT RACK AND SIDE PANEL ASSEMBLIES
2016 ALTERRA 500 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-840 | RACK-MOLDED-FRONT-ASSY | 1 | $324.95 | |
| 2 | 5506-672 | RACK,W/OVERMOLD | 1 | $224.95 | |
| 3 | 5506-671 | TUBE,RACK-OUTER PERIMETER-PTD BLK | 1 | $54.95 | |
| 4 | 5506-592 | TUBE,RACK-INNER PERIMETER-PTD BLK | 1 | $90.95 | |
| 5 | 1423-301 | SCREW,MACH-TSTRH M6-1.0X10 CL8.8 BLK W/ | 1 | $0.95 | |
| 6 | 4411-678 | DECAL,WARNING-FRONT RACK | 1 | $6.47 | |
| 7 | 4411-879 | DECAL,ARCTIC CAT-RACK | 1 | $16.49 | |
| 8 | 1423-280 | SCREW,SHOULDER-M8 X 12.7D X 12L | 1 | $3.85 | |
| 9 | 4406-626 | MOUNT,RACK FRONT-RH | 1 | $54.95 | |
| 9 | 4406-627 | MOUNT,RACK FRONT-LH | 1 | $54.95 | |
| 10 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 12 | 0412-838 | R/B 1412-108 | 1 | $62.95 | |
| 13 | 0412-852 | R/B 1412-114 | 1 | $46.95 | |
| 16 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 17 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 18 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 20 | 1423-276 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.23 | |
| 21 | 2402-218 | GATE,SHIFT-AUTO-W/PARK | 1 | $6.89 | |
| 22 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 23 | 4406-710 | VENT,PLASTIC-RH | 1 | $4.13 | |
| 23 | 4406-711 | VENT,PLASTIC-LH | 1 | $4.13 | |
| 25 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 26 | 4406-725 | PANEL,ENGINE COVER-RH (500) | 1 | $15.11 | |
| 27 | 4406-578 | PANEL,ENGINE COVER-RH (550/700) | 1 | $15.11 |
