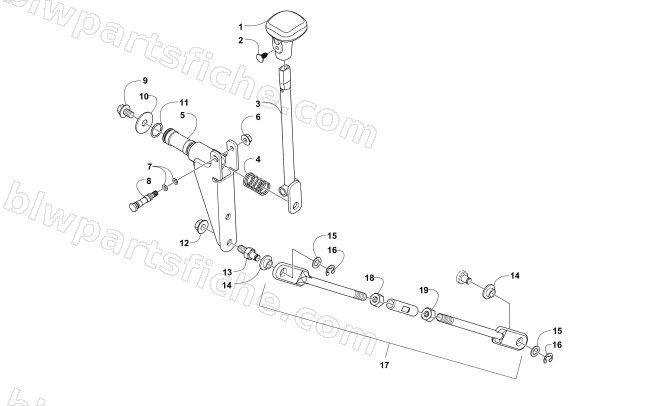

SHIFT LEVER ASSEMBLY
2016 ALTERRA 550 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0402-843 | KNOB,SHIFT | 1 | $16.49 | |
| 2 | 0423-345 | CLIP,PUSH | 1 | $0.95 | |
| 3 | 2502-162 | LEVER,SHIFT-PTD BLK (ATV 151) | 1 | $114.95 | |
| 4 | 2402-117 | SPRING,SHIFTER | 1 | $1.64 | |
| 5 | 2502-149 | SHAFT,SHIFT-PTD BLACK | 1 | $54.95 | |
| 6 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 7 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 8 | 0402-675 | AXLE,PIVOT,SHAFT | 1 | $20.63 | |
| 9 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 10 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 11 | 0423-299 | O-RING,-016 (5/8X3/4X1/16) | 1 | $1.23 | |
| 12 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 1402-621 | PIN,SHIFT LINKAGE MOUNT | 1 | $3.57 | |
| 14 | 0423-091 | BUSHING,SHIFT | 1 | $3.16 | |
| 15 | 0623-094 | WASHER, FLAT - 5/16 ID | 1 | $0.40 | |
| 16 | 0423-169 | E-RING,5/16-(.242 X.588 X.035) | 1 | $0.68 | |
| 17 | 2502-139 | LINKAGE,SHIFT-ASSEMBLY | 1 | $42.95 | |
| 18 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 19 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 |
