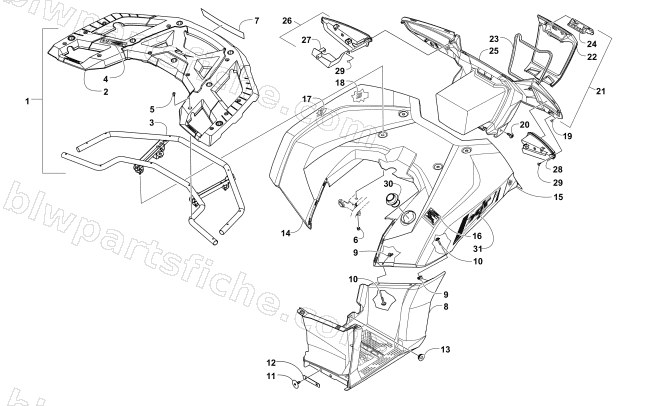

REAR RACK, BODY PANEL, FOOTWELL, AND TAILLIGHT ASSEMBLIES
2016 ALTERRA 700 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-841 | RACK,REAR-ASSY | 1 | $412.95 | |
| 2 | 5506-672 | RACK,W/OVERMOLD | 1 | $224.95 | |
| 3 | 7506-025 | R/B 7506-027 | 1 | $143.95 | |
| 4 | 4411-680 | DECAL,WARNING-REAR RACK | 1 | $4.95 | |
| 5 | 1423-301 | SCREW,MACH-TSTRH M6-1.0X10 CL8.8 BLK W/ | 1 | $0.95 | |
| 6 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 5506-746 | FOOTWELL,TOP/BOTTOM-RH-ASSY | 1 | $140.95 | |
| 8 | 5506-747 | FOOTWELL,TOP/BOTTOM-LH-ASSY | 1 | $140.95 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 11 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 12 | 7506-164 | PLATE,FOOTWELL-PTD BLACK | 1 | $6.61 | |
| 13 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 14 | 7506-156 | FENDER,REAR-TRUE TIMBER HTC-ASSY | 1 | $722.95 | |
| 15 | 4411-816 | REFLECTOR,REAR-RH | 1 | $10.97 | |
| 15 | 4411-817 | REFLECTOR,REAR-LH | 1 | $10.97 | |
| 16 | 4411-676 | DECAL,WARNING-TIRE PRESSURE | 1 | $6.47 | |
| 17 | 0412-848 | R/B 1412-112 | 1 | $44.95 | |
| 18 | 0412-849 | R/B 1412-110 | 1 | $8.95 | |
| 19 | 1423-321 | CLIP,RETAINING | 1 | $0.54 | |
| 21 | 5506-593 | DOOR,BOX STORAGE-REAR-ASSY | 1 | $108.95 | |
| 22 | 4406-583 | DOOR,BOX STORAGE-REAR | 1 | $29.95 | |
| 23 | 4406-839 | SEAL,DOOR-BOX STORAGE | 1 | $10.97 | |
| 24 | 4406-316 | LATCH,DOOR-PLASTIC | 1 | $26.95 | |
| 25 | 4406-581 | FASCIA,REAR | 1 | $84.95 | |
| 26 | 0509-110 | TAILLIGHT,LED-RH-W/SHIELD (ATV 151) | 1 | $129.95 | |
| 27 | 0412-844 | SHIELD,RIGHT TAIL LIGHT | 1 | $30.95 | |
| 28 | 0509-107 | TAILLIGHT,LED-LH (XR) | 1 | $94.95 | |
| 29 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 30 | 1470-074 | NECK,FILL-REMOTE | 1 | $10.97 |
