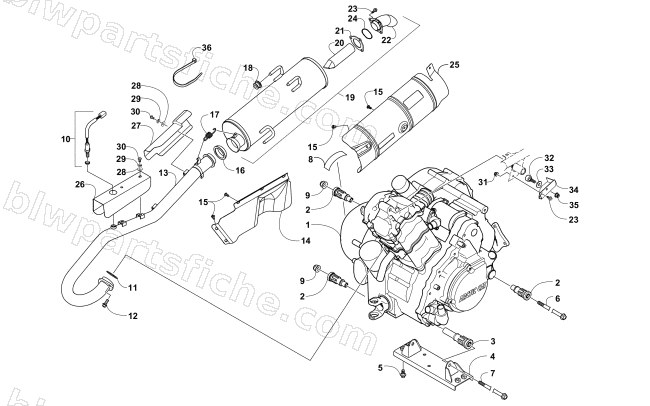

ENGINE AND EXHAUST
2016 ALTERRA 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0801-129 | MOUNT,RUBBER-ENGINE | 1 | $37.95 | |
| 3 | 0801-122 | MOUNT,RUBBER,ENGINE-LONG | 1 | $58.95 | |
| 4 | 0508-032 | MOUNT,ENGINE-PTD BLK (H1) | 1 | $47.95 | |
| 5 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 6 | 0423-451 | SCREW,CAP-HFH M10X1.25X190 CL10.9 Z&Y | 1 | $5.95 | |
| 7 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 8 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 9 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 10 | 0630-302 | R/B 0430-135 | 1 | $162.95 | |
| 11 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 12 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 13 | 0512-748 | PIPE,EXHAUST-PTD BLACK | 1 | $292.95 | |
| 14 | 0412-785 | SHIELD,EXHAUST PIPE | 1 | $23.39 | |
| 15 | 1623-490 | SCREW,CAP-TSPNH M6X1.0X12 BLK-TRILOBE | 1 | $1.37 | |
| 16 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 17 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 18 | 0412-544 | GROMMET,EXHAUST HANGER | 1 | $3.30 | |
| 19 | 0512-735 | MUFFLER-ASSEMBLY-PTD HI TEMP BLK | 1 | $1,018.95 | |
| 20 | 0512-647 | SPARK ARRESTER | 1 | $37.95 | |
| 21 | 0412-675 | GASKET,SPARK ARRESTER | 1 | $20.63 | |
| 22 | 0512-739 | TAIL PIPE - PTD BLK | 1 | $30.95 | |
| 23 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 24 | 1423-246 | WASHER,WAVE | 1 | $10.97 | |
| 25 | 0412-788 | SHIELD,EXHAUST | 1 | $45.95 | |
| 26 | 0412-854 | SHIELD,EXHAUST | 1 | $29.95 | |
| 27 | 0412-853 | SHIELD,EXHAUST | 1 | $52.95 | |
| 28 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 29 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 30 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 31 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 32 | 1423-299 | BUMPER,ENGINE MOUNT | 1 | $19.25 | |
| 33 | 8450-127 | WASHER,FLAT-M8-9.12 X 18.80 X 2.30Z&Y | 1 | $0.95 | |
| 34 | 0408-062 | BRACKET,HEAD MOUNT | 1 | $8.21 | |
| 35 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 36 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
