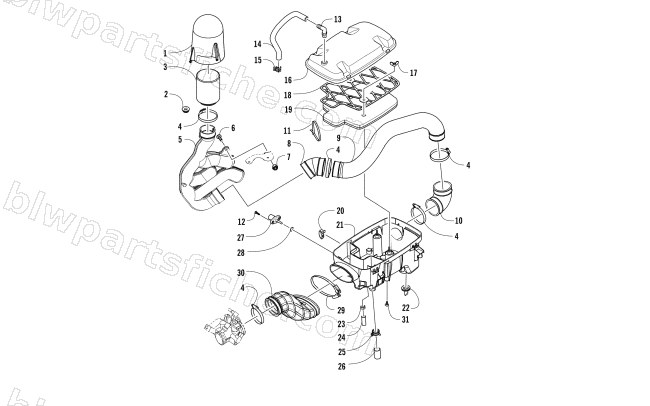

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — AIR INTAKE ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1470-022 | SHIELD,DEBRIS PRE-FILTER | 1 | $10.97 | |
| 2 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 3 | 0470-834 | FILTER, DUST | 1 | $47.95 | |
| 4 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 5 | 0513-058 | DUCT,AIR IN-WELDT | 1 | $47.95 | |
| 6 | 8476-825 | SCREW,MACH-TSTRH M8X1.25X25 Z&Y | 1 | $3.71 | |
| 7 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 0413-324 | DUCT-45 DEGREE | 1 | $15.11 | |
| 9 | 1470-017 | DUCT,INTAKE | 1 | $47.95 | |
| 10 | 0413-098 | BOOT,AIR DUCT | 1 | $16.49 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 12 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 13 | 0470-881 | FITTING,ELBOW-1/4 NPT X1/2 HB (NYLON) | 1 | $3.57 | |
| 14 | 0410-226 | HOSE,VENT-CRANKCASE | 1 | $17.87 | |
| 15 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 16 | 0470-861 | R/B 1470-220 | 1 | $99.95 | |
| 18 | 1470-030 | SCREEN,AIR FILTER | 1 | $47.95 | |
| 19 | 1470-029 | FILTER,AIR BOX | 1 | $47.95 | |
| 20 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 21 | 0570-395 | BOTTOM,AIR BOX-W/ INSERTS | 1 | $90.95 | |
| 22 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 23 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 24 | 0470-863 | CAP,DRAIN-AIRBOX | 1 | $2.06 | |
| 25 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 | |
| 26 | 0423-766 | CAP,DRAIN-AIR BOX | 1 | $2.06 | |
| 27 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 28 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 29 | 1423-074 | CLAMP,DUCT | 1 | $17.87 | |
| 30 | 1470-036 | RUNNER,INTAKE | 1 | $33.95 | |
| 31 | 8468-612 | SCREW,MACH-TSPNH M5X0.8X20 CL8.8 BLK | 1 | $1.23 |
