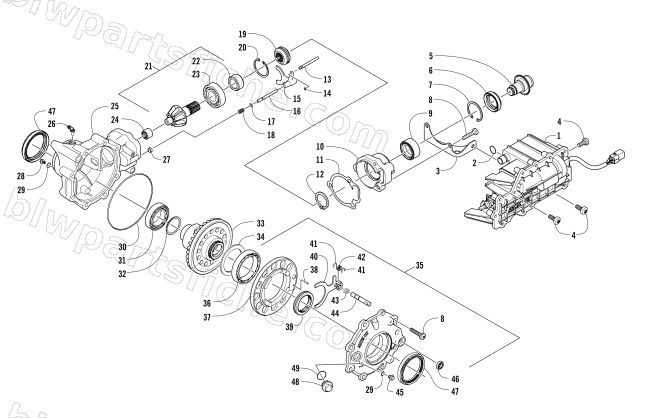

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — FRONT DRIVE GEARCASE ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-194 | ACTUATOR,ELEC LOCK | 1 | $454.95 | |
| 2 | 1402-981 | O-RING,ACTUATOR-FRONT GEARCASE | 1 | $0.68 | |
| 3 | 1502-237 | BRACKET,ACTUATOR-WELD'T | 1 | $45.95 | |
| 4 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 5 | 2502-156 | SHAFT,INPUT-ASSEMBLY | 1 | $94.95 | |
| 6 | 1402-011 | SEAL | 1 | $5.51 | |
| 7 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 8 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 9 | 1402-043 | BEARING, BALL - DOUBLE ROW | 1 | $69.95 | |
| 10 | 0502-528 | HOUSING,PINION-MACH | 1 | $180.95 | |
| 11 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 12 | 0423-417 | RING,RETAINING-EXT 30 | 1 | $8.21 | |
| 13 | 0402-997 | PUSHROD,SELECTOR | 1 | $66.95 | |
| 14 | 0423-402 | RING,RETAINING-4MM EXT. | 1 | $3.16 | |
| 15 | 0402-998 | FORK,SELECTOR | 1 | $82.95 | |
| 16 | 0402-417 | SHAFT,SHUTTLE | 1 | $20.63 | |
| 17 | 0423-147 | O-RING,3X 2MM | 1 | $1.50 | |
| 18 | 0402-999 | SPRING,RETURN-4WD | 1 | $1.78 | |
| 19 | 0402-413 | COUPLER,DRIVE | 1 | $66.95 | |
| 20 | 1423-067 | RING,RETAINING-INTL-65mm (DHO-62 ST ZDL) | 1 | $2.06 | |
| 21 | 1502-863 | GEAR,10 TOOTH PINION-SUBASSEMBLY | 1 | $192.95 | |
| 22 | 1402-977 | COLLAR,RETAINING | 1 | $49.95 | |
| 23 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 24 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 25 | 1502-856 | HOUSING,GEARCASE-MACHINED | 1 | $280.95 | |
| 26 | 2402-160 | FITTING,45 DEG BARB | 1 | $42.95 | |
| 27 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 28 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 29 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 30 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 31 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 32 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 32 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 32 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 32 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 32 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 33 | 1502-860 | GEAR (36T 3.6 LOCK)-WELDMENT | 1 | $679.95 | |
| 34 | 1402-074 | SHIM, 1.3 | 1 | $30.95 | |
| 34 | 1402-075 | SHIM, 1.4 | 1 | $30.95 | |
| 34 | 1402-076 | SHIM, 1.5 | 1 | $30.95 | |
| 34 | 1402-077 | SHIM, 1.6 | 1 | $30.95 | |
| 34 | 1402-078 | SHIM, 1.7 | 1 | $30.95 | |
| 36 | 1402-053 | BEARING, BALL (6912 C3) | 1 | $118.95 | |
| 37 | 0502-413 | FLANGE,BEARING-MACH | 1 | $102.95 | |
| 38 | 1402-079 | PIN, PARALLEL | 1 | $1.78 | |
| 39 | 1402-042 | COLLAR, SLIDING - LOCK | 1 | $100.95 | |
| 40 | 1402-054 | FORK | 1 | $69.95 | |
| 41 | 1402-058 | RING, RETAINING | 1 | $9.59 | |
| 42 | 1402-057 | SPRING | 1 | $20.63 | |
| 43 | 1402-063 | SPRING | 1 | $3.02 | |
| 44 | 1402-656 | SHAFT,LOCK | 1 | $37.95 | |
| 45 | 1402-211 | PLUG, OIL LEVEL | 1 | $20.63 | |
| 46 | 1402-056 | SEAL | 1 | $20.63 | |
| 47 | 2402-240 | SEAL,48X84X9 FKM | 1 | $26.95 | |
| 48 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 49 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 |
