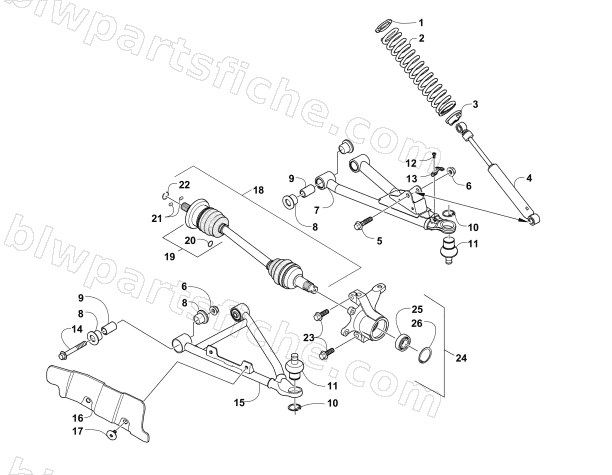

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — FRONT SUSPENSION ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 2 | 0503-729 | SPRING,COIL-PTD-TEAM ARCTIC GREEN | 1 | $79.95 | |
| 3 | 0404-496 | ADJUSTER,CAM-SPRING | 1 | $20.63 | |
| 4 | 0403-511 | SHOCK ABSORBER-FRONT(15 PRLR) | 1 | $128.95 | |
| 5 | 8409-055 | SCREW,CAP-HFH M10X1.25X55 CL10.9 Z&Y | 1 | $4.13 | |
| 7 | 0503-432 | A-ARM,FRONT UPPER RH-BLACK-ASSY | 1 | $187.95 | |
| 7 | 0503-433 | A-ARM,FRONT UPPER LH-BLACK-ASSY | 1 | $212.95 | |
| 8 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 9 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 10 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 11 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 12 | 0423-946 | SCREW,SELF TAP-TSPNH-M5X0.8X12 BLK | 1 | $0.68 | |
| 13 | 1502-594 | CLIP,BRAKE HOSE | 1 | $1.92 | |
| 14 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 15 | 0503-376 | A-ARM,FRONT LOWER-RH-ASSY (BLACK) | 1 | $260.95 | |
| 15 | 0503-377 | A-ARM,FRONT LOWER-LH-ASSY (BLACK) | 1 | $260.95 | |
| 16 | 1406-034 | GUARD, BOOT-RH (BLACK) | 1 | $37.95 | |
| 16 | 1406-035 | GUARD, BOOT-LH (BLACK) | 1 | $37.95 | |
| 17 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 19 | 2436-111 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 21 | 1402-885 | PIN,TRANSFER,SHORT-COUPLER AXLE | 1 | $1.92 | |
| 22 | 1402-889 | CIRCLIP,22MM | 1 | $1.78 | |
| 23 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 24 | 0505-580 | KNUCKLE,STEERING-RH ASSY | 1 | $239.95 | |
| 24 | 0505-581 | KNUCKLE,STEERING-LH ASSY | 1 | $239.95 | |
| 25 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 26 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
