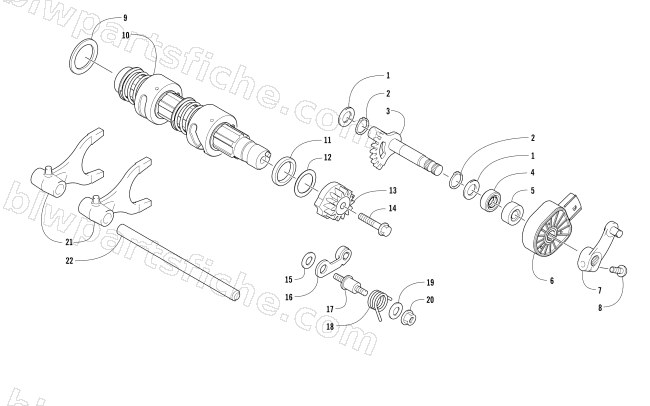

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — GEAR SHIFTING ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0828-036 | WASHER, STEEL, 12 x 20 x .9 | 1 | $1.37 | |
| 2 | 0831-010 | RING, EXTERNAL RETAINING - DSH-12 | 1 | $1.50 | |
| 3 | 0818-155 | SHAFT,ROOSTER- ASSEMBLY (H1 SYNERJECT) | 1 | $42.95 | |
| 4 | 0830-044 | SEAL, SUB-GEAR SHIFT | 1 | $4.54 | |
| 5 | 0818-152 | SPACER,OUTER-SHIFT SELECTOR | 1 | $10.97 | |
| 6 | 0409-125 | R/B 0409-201 | 1 | $99.95 | |
| 7 | 0818-164 | ARM,GEAR SELECT-ASSY | 1 | $64.95 | |
| 8 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 9 | 0828-040 | WASHER, STEEL, 25 x 34 x .72 | 1 | $1.78 | |
| 10 | 0818-133 | SHAFT,GEAR SHIFT-P, PB | 1 | $203.95 | |
| 11 | 0828-131 | SPACER,SHIFT SHAFT | 1 | $4.95 | |
| 12 | 0828-037 | WASHER, STEEL 20 x 28 x .5 | 1 | $3.02 | |
| 13 | 0818-143 | DETENT CAM,GEAR SHIFT-HDX | 1 | $17.87 | |
| 14 | 0826-006 | SCREW,CAP HFH M6 x 1 x 25 | 1 | $0.95 | |
| 15 | 0828-038 | WASHER, STEEL, 6 x 14 x .9 | 1 | $1.64 | |
| 16 | 0818-002 | STOPPER, SWING ARM, CAM ASSY | 1 | $50.95 | |
| 17 | 0818-004 | SUPPORT, CAM STOPPER | 1 | $4.95 | |
| 18 | 0818-144 | SPRING,TORSION-CAM ARM (HDX) | 1 | $13.73 | |
| 19 | 0828-035 | WASHER, STEEL 6 x 16 x 2.5 | 1 | $2.61 | |
| 20 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 21 | 0818-072 | R/B 0818-171 | 1 | $125.95 | |
| 22 | 0818-006 | SHAFT, SHIFT FORK | 1 | $30.95 |
