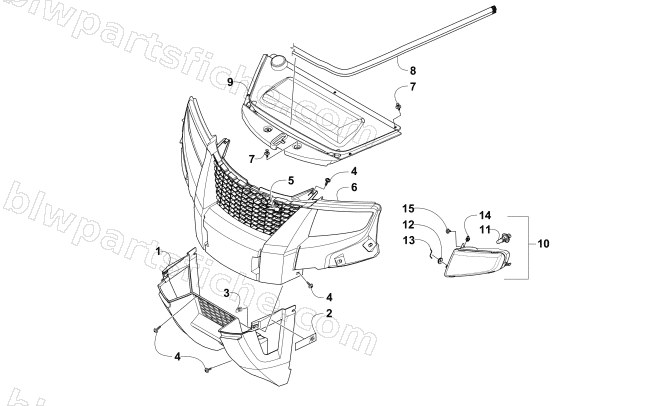

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — GRILL AND HEADLIGHT ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 5 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 6 | 4406-608 | FASCIA,FR UPPER | 1 | $156.95 | |
| 7 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 8 | 4406-885 | SEAL,ACCESS COVER | 1 | $85.95 | |
| 9 | 4406-758 | PANEL,ACCESS-FRONT | 1 | $50.95 | |
| 10 | 0509-102 | HEADLIGHT,HALOGEN/LED-RH (XR XT) | 1 | $169.95 | |
| 10 | 0509-103 | HEADLIGHT,HALOGEN/LED-LH (XR XT) | 1 | $169.95 | |
| 11 | 0409-182 | BULB,HEADLIGHT-H13 HALOGEN | 1 | $50.95 | |
| 12 | 4406-722 | GROMMET-RH | 1 | $2.88 | |
| 12 | 4406-723 | GROMMET-LH | 1 | $2.88 | |
| 13 | 0409-177 | WIREFORM,HEADLIGHT | 1 | $1.92 | |
| 14 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 15 | 2623-113 | SCREW,1" RND KNOB-M5X0.8X15MM LG | 1 | $3.71 |
