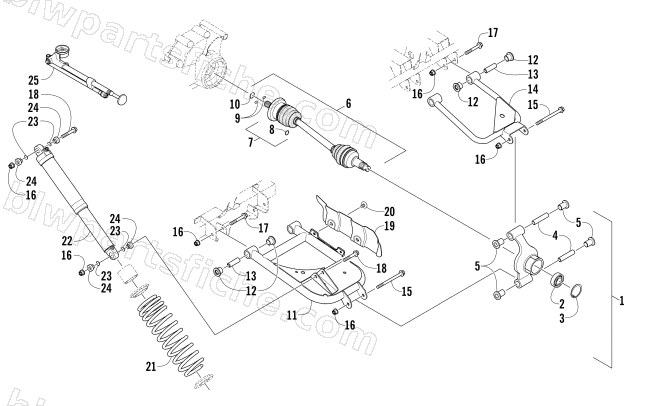

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — REAR SUSPENSION ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0504-613 | KNUCKLE,FORGED STEEL-REAR-ASSY | 1 | $299.95 | |
| 2 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 3 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 4 | 0403-437 | COLLAR,SUSPENSION BUSHING-REAR K | 1 | $6.89 | |
| 5 | 0403-283 | BUSHING,REAR SUSPENSION | 1 | $2.75 | |
| 7 | 2436-111 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 9 | 1402-884 | PIN,TRANSFER,LONG-COUPLER AXLE | 1 | $1.64 | |
| 10 | 1402-890 | CIRCLIP,25MM | 1 | $5.09 | |
| 11 | 0504-592 | A-ARM,REAR LOWER RH-BLACK-ASSY | 1 | $187.95 | |
| 11 | 0504-593 | A-ARM,REAR LOWER LH-BLK ASSY | 1 | $187.95 | |
| 12 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 13 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 14 | 0504-872 | A-ARM,REAR-UPPER-RH-ASSY | 1 | $108.95 | |
| 14 | 0504-873 | A-ARM,REAR UPPER-LH - ASSY | 1 | $108.95 | |
| 15 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 | |
| 17 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 18 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 | |
| 19 | 1406-068 | GUARD,BOOT-REAR-RH (BLACK) | 1 | $37.95 | |
| 19 | 1406-069 | GUARD,BOOT-REAR-LH (BLACK) | 1 | $37.95 | |
| 20 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 22 | 0404-256 | SHOCK ABSORBER-REAR-FOX FLOAT | 1 | $729.95 | |
| 23 | 2604-698 | O-RING,5/8ID X 7/8OD | 1 | $0.40 | |
| 24 | 0504-684 | SPACER,SPHERICAL BEARING | 1 | $2.33 | |
| 25 | 2603-614 | PUMP,FOX HP W/BLEED-150 PSI (FLOAT2) | 1 | $69.95 |
