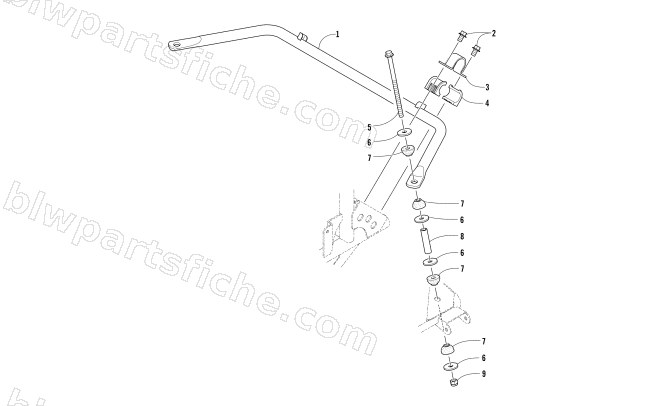

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — SWAY BAR ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0504-634 | SWAYBAR,REAR-PTD BLK | 1 | $140.95 | |
| 2 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 3 | 0504-631 | CLAMP,SWAYBAR BUSHING BLACK-PTD | 1 | $19.25 | |
| 4 | 0404-190 | BUSHING,HALF-SWAYBAR | 1 | $12.35 | |
| 5 | 0423-723 | SCREW,CAP-HFH M10-1.25X170 Z&Y CL 10.9 | 1 | $16.49 | |
| 6 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 7 | 1402-434 | BUSHING,SWAYBAR LINK | 1 | $12.35 | |
| 8 | 1423-039 | SPACER,SWAYBAR | 1 | $5.78 |
