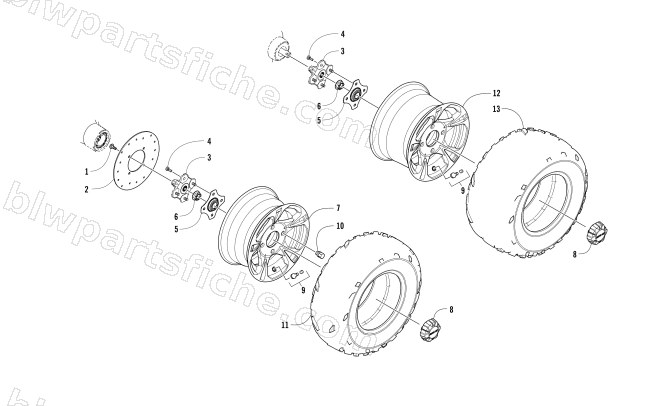

WHEEL AND TIRE ASSEMBLY
2016 HDX 700 XT SE /
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-418 | KIT,BRAKE DISC (1402-455) | 1 | $56.95 | |
| 2 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 1502-433 | HUB - ASSEMBLY | 1 | $180.95 | |
| 3 | 1502-437 | HUB - ASSEMBLY | 1 | $180.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 2402-087 | PLATE,HUB | 1 | $5.92 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 2402-263 | WHEEL,FRT-BLK ALUM-14" (NO CAT) | 1 | $197.95 | |
| 8 | 2402-179 | CAP, WHEEL | 1 | $26.95 | |
| 8 | 2402-277 | CAP,WHEEL | 1 | $27.95 | |
| 9 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 10 | 1423-260 | NUT,LUG (BLK) | 1 | $3.57 | |
| 10 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 11 | 1402-953 | TIRE,DURO KADEN-26X9R14 | 1 | $211.95 | |
| 12 | 2402-264 | WHEEL,REAR-BLK ALUM-14" (NO CAT) | 1 | $197.95 | |
| 13 | 1402-954 | TIRE,DURO KADEN-26X11R14 | 1 | $220.95 |
