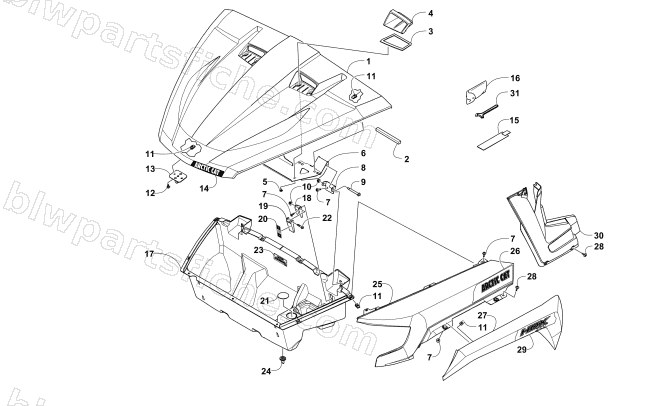

2016 Arctic Cat HDX 700 XT — HOOD/FRONT STORAGE AND SIDE PANEL ASSEMBLY
2016 HDX 700 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-972 | PANEL,HOOD-TT CAMO | 1 | $1,115.95 | |
| 1 | 5506-973 | PANEL,HOOD - BLK(S) | 1 | $429.95 | |
| 2 | 4406-886 | SEAL,HOOD | 1 | $6.89 | |
| 4 | 4406-620 | HOOD SCOOP, RH | 1 | $16.49 | |
| 4 | 4406-621 | HOOD SCOOP, LH | 1 | $16.49 | |
| 5 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 6 | 7506-173 | HOOD,HINGE-PTD BLK | 1 | $156.95 | |
| 7 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 9 | 1423-289 | SCREW,SHOULDER M6 X 1.0(8D X 60L) | 1 | $8.21 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 12 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 13 | 5506-906 | HOOK, HOOD LATCH, WELDT | 1 | $19.25 | |
| 14 | 4411-570 | DECAL,HOOD-FRONT (ARCTIC CAT) | 1 | $17.87 | |
| 14 | 4411-769 | DECAL,HOOD FR-BLK/WHT | 1 | $4.95 | |
| 14 | 4411-768 | DECAL,HOOD-FRONT-(ARCTIC CAT TAG) | 1 | $10.97 | |
| 15 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 16 | 2516-863 | KIT,TOOL-HDX | 1 | $69.95 | |
| 17 | 4406-615 | BOX,FRONT STORAGE | 1 | $122.95 | |
| 18 | 4406-696 | R/B 8506-839 | 1 | $6.95 | |
| 19 | 4406-829 | R/B 8506-840 | 1 | $7.95 | |
| 20 | 4411-970 | DECAL,HOOD PROP | 1 | $4.95 | |
| 21 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 22 | 1423-288 | SCREW,SHOULDER M6 X 1.0(8D X 35L) | 1 | $17.87 | |
| 23 | 4411-553 | DECAL,CAUTION LOAD CAPACITY (25LB) | 1 | $3.30 | |
| 24 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 25 | 4406-808 | FENDER,FR RH INNER-TT CAMO | 1 | $607.95 | |
| 25 | 4406-809 | FENDER,FR LH INNER-TT CAMO | 1 | $607.95 | |
| 25 | 5506-936 | FENDER, FR RH INNER-BLK (S) | 1 | $163.95 | |
| 25 | 5506-937 | FENDER, FR LH INNER-BLK (S) | 1 | $163.95 | |
| 26 | 5411-034 | DECAL,FENDER,INNER RH-(ARCTIC CAT) | 1 | $17.87 | |
| 26 | 5411-035 | DECAL,FENDER,INNER LH-(ARCTIC CAT) | 1 | $17.87 | |
| 26 | 5411-032 | DECAL,FENDER,INNER-RH (ARCTIC CAT) | 1 | $17.87 | |
| 26 | 5411-033 | DECAL,FENDER,INNER-LH (ARCTIC CAT) | 1 | $17.87 | |
| 27 | 4406-810 | FENDER,FR RH OUTER-TT CAMO | 1 | $405.95 | |
| 27 | 4406-811 | FENDER,FR LH OUTER-TT CAMO | 1 | $405.95 | |
| 27 | 5506-938 | FENDER, FR RH OUTER-BLK (S) | 1 | $148.95 | |
| 27 | 5506-939 | FENDER, FR LH OUTER-BLK (S) | 1 | $148.95 | |
| 27 | 5506-950 | FENDER, FR RH OUTER-GRN (S) | 1 | $148.95 | |
| 27 | 5506-951 | FENDER, FR LH OUTER-GRN (S) | 1 | $148.95 | |
| 28 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 29 | 4411-880 | DECAL,FENDER-LWR-RH (HDX XT) | 1 | $20.63 | |
| 29 | 4411-881 | DECAL,FENDER-LWR-LH (HDX XT) | 1 | $20.63 | |
| 29 | 4411-862 | DECAL,FENDER FR UPR-RH (HDX XT) | 1 | $13.73 | |
| 29 | 4411-863 | DECAL,FENDER FR UPR-LH (HDX XT) | 1 | $13.73 | |
| 29 | 4411-854 | DECAL,FRONT FENDER UPR-RH(HDX 700 TAG) | 1 | $13.73 | |
| 29 | 4411-855 | DECAL,FRONT FENDER UPR-LH(HDX 700 TAG) | 1 | $13.73 | |
| 30 | 4406-610 | PANEL,SIDE-FR-RH | 1 | $42.95 | |
| 30 | 4406-611 | PANEL,SIDE-FR-LH | 1 | $42.95 | |
| 30 | 4411-772 | DECAL,FRONT FENDER LWR-RH(HDX) | 1 | $13.73 | |
| 30 | 4411-773 | DECAL,FRONT FENDER LWR-LH (HDX) | 1 | $13.73 | |
| 30 | 4411-782 | DECAL,FRONT FENDER LWR-RH(HDX XT TAG) | 1 | $13.73 | |
| 30 | 4411-783 | DECAL,FRONT FENDER LWR-LH(HDX XT TAG) | 1 | $33.95 | |
| 31 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
