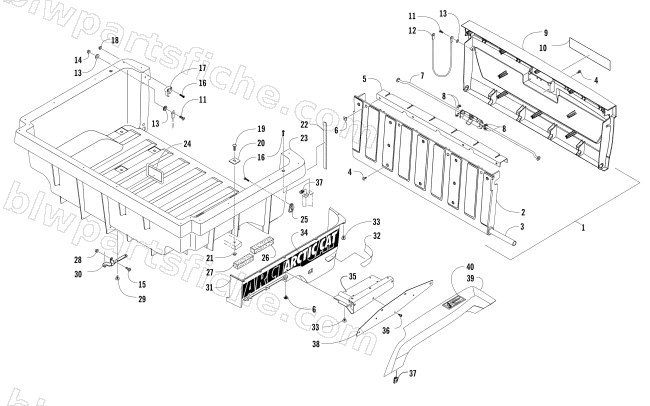

2016 Arctic Cat PROWLER 700 XT EPS — CARGO BOX AND TAILGATE ASSEMBLY
2016 PROWLER 700 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-205 | TAILGATE ASSEMBLY - BLACK | 1 | $357.95 | |
| 2 | 2406-365 | PANEL,TAILGATE INNER | 1 | $140.95 | |
| 3 | 1406-927 | SHAFT,PIVOT-TAILGATE | 1 | $26.95 | |
| 4 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 5 | 1506-704 | BRACE,TAILGATE-BLACK | 1 | $58.95 | |
| 6 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 7 | 2506-056 | LATCH,TAILGATE-BLACK | 1 | $112.95 | |
| 8 | 1406-706 | BEARING,HANDLE | 1 | $2.06 | |
| 9 | 2406-369 | PANEL,TAILGATE OUTER BLACK | 1 | $180.95 | |
| 10 | 2411-212 | DECAL,TAILGATE-CENTER (ARCTIC CAT) | 1 | $4.95 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0487-045 | CABLE,TAILGATE | 1 | $17.87 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 15 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 16 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 17 | 2506-664 | STRIKER,TAILGATE-RH-COATED | 1 | $17.87 | |
| 17 | 2506-665 | STRIKER,TAILGATE-LH-COATED | 1 | $17.87 | |
| 18 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 19 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 20 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 21 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 22 | 0417-006 | STRIP,FOAM .125 IN | 1 | $2.06 | |
| 23 | 2406-916 | BOX,REAR CARGO | 1 | $806.95 | |
| 24 | 4411-118 | DECAL,WARNING-CARGO(PROWLER R) | 1 | $20.63 | |
| 25 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 | |
| 26 | 0417-010 | FOAM,CARGO BOX (1.75 X 2 X 8) | 1 | $6.89 | |
| 27 | 0417-011 | FOAM,CARGO BOX(1.625 X 2 X 6.5) | 1 | $5.78 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 30 | 7506-167 | BRACKET,BOX LATCH SPRING-PTD BLACK | 1 | $20.63 | |
| 31 | 1406-762 | PANEL,BOX-RIGHT-BLACK | 1 | $58.95 | |
| 31 | 1406-761 | PANEL,BOX-LEFT-BLACK | 1 | $58.95 | |
| 32 | 1411-128 | REFLECTOR,RH-REAR | 1 | $13.73 | |
| 32 | 1411-129 | REFLECTOR,LH-REAR | 1 | $13.73 | |
| 33 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 35 | 7506-062 | BRACKET,FENDER SUPPORT-RH-BLACK | 1 | $114.95 | |
| 35 | 7506-063 | BRACKET,FENDER SUPPORT-LH-BLACK | 1 | $114.95 | |
| 36 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 37 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 38 | 7506-258 | BRKT,FENDER MTG-RH-PTD | 1 | $33.95 | |
| 38 | 7506-259 | BRKT,FENDER MTG-LH-PTD | 1 | $33.95 | |
| 39 | 5506-960 | FENDER, RR RH-BLK(S) | 1 | $148.95 | |
| 39 | 5506-961 | FENDER, RR LH-BLK(S) | 1 | $148.95 | |
| 40 | 4411-883 | R/B 6411-496 | 1 | $4.95 |
