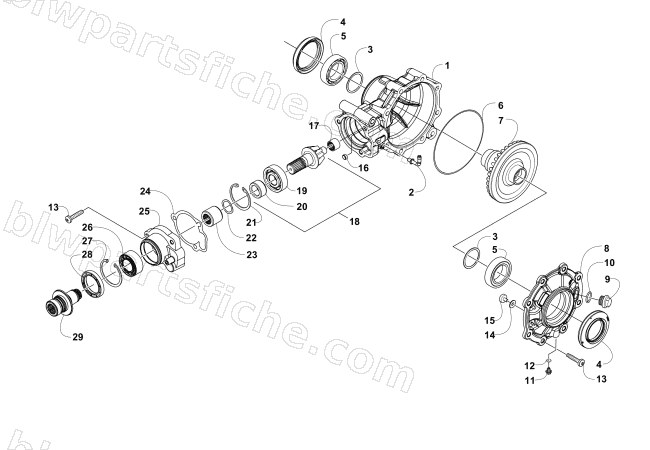

REAR DRIVE GEARCASE ASSEMBLY

2016 PROWLER 700 XT EPS

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
2	2402-162	FITTING,90 DEG BARB	1	$42.95
3	0402-405	SHIM,41X49X1.3	1	$10.97
3	0402-406	SHIM,41X49X1.4	1	$10.97
3	0402-407	SHIM,41X49X1.5	1	$10.97
3	0402-408	SHIM,41X49X1.6	1	$12.35
3	0402-409	SHIM,41X49X1.7	1	$10.97
4	2402-240	SEAL,48X84X9 FKM	1	$26.95
5	0402-393	BEARING,BALL-SR(6008 Z C-O)	1	$17.87
6	0423-149	O-RING,150X 2MM	1	$17.87
7	1402-032	GEAR, REAR (36 TOOTH)	1	$324.95
8	0502-741	COVER,GEARCASE-MACH	1	$108.95
9	0402-333	PLUG, FILL	1	$13.73
10	0423-154	O-RING, GEARCASE,20 X 2.5MM	1	$3.16
11	1402-210	PLUG,DRAIN-MAGNETIC	1	$20.63
12	0423-153	O-RING, GEARCASE,6X1.5MM	1	$3.96
13	0423-118	SCREW,SELF TAP-TSPNH M8X1.25X40	1	$1.78
14	0402-429	SHIM,6.3X18X1.3	1	$10.97
14	0402-430	SHIM,6.3X18X1.4	1	$12.35
14	0402-431	SHIM,6.3X18X1.5	1	$12.35
14	0402-432	SHIM,6.3X18X1.6	1	$10.97
14	0402-433	SHIM,6.3X18X1.7	1	$12.35
15	0402-326	BUTTON,THRUST	1	$6.34
16	0402-411	PIN,DOWEL	1	$6.89
17	0402-328	BEARING,NEEDLE (16NQ2316)	1	$17.87
18	1502-863	GEAR,10 TOOTH PINION-SUBASSEMBLY	1	$192.95
19	0402-327	BEARING,BALL (6305)	1	$26.95
20	1402-977	COLLAR,RETAINING	1	$49.95
21	1423-067	RING,RETAINING-INTL-65mm (DHO-62 ST ZDL)	1	$2.06
22	0402-982	WASHER,SPRING	1	$8.21
23	0402-981	COLLAR,SHAFT-SPLINED	1	$50.95
24	0402-947	GASKET, FLANGE	1	$3.16
25	0502-529	HOUSING,PINION-MACH	1	$196.95
26	1402-043	BEARING, BALL - DOUBLE ROW	1	$69.95
27	0423-423	RING,RETAINING (HOUSING ID:55)	1	$4.13
28	1402-011	SEAL	1	$5.51
29	2502-156	SHAFT,INPUT-ASSEMBLY	1	$94.95
