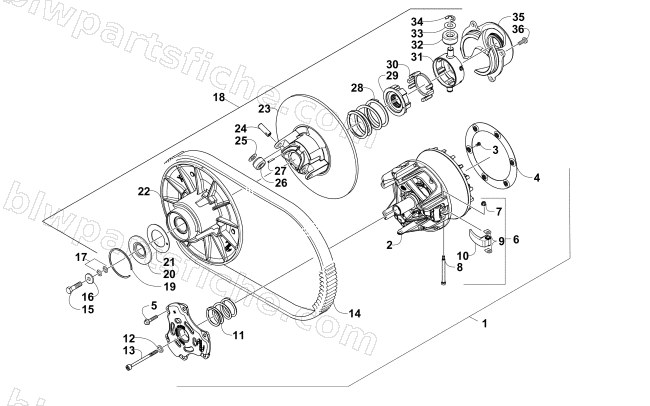

CLUTCH ASSEMBLY
2016 WILDCAT 4X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0823-498 | ASSY, CLUTCH PRIMARY IDLER 7.25" | 1 | $933.95 | |
| 2 | 0823-499 | ASSY, CLUTCH PRIMARY IDLER 7.25" UNCALIB | 1 | $848.95 | |
| 3 | 0623-914 | SCREW,SELF TAP THD LK-TSPNH 10-24X.375 | 1 | $0.26 | |
| 4 | 0823-424 | PLATE,WINDAGE 7.25" PRIMARY | 1 | $42.95 | |
| 5 | 0823-402 | SCREW,HEX FLANGE HD-1/4-20X1.25 | 1 | $5.09 | |
| 6 | 0823-426 | KIT,HARDWARE (FLYWEIGHT) | 1 | $61.95 | |
| 7 | 0823-399 | NUT,LOCK HEX #10-24 FLEXLOCK | 1 | $9.59 | |
| 8 | 0823-396 | SCREW,SHOULDER-HEX SKT .25X2.5 | 1 | $12.35 | |
| 9 | 0823-397 | WASHER,THRUST-.251X.260X.015 | 1 | $10.97 | |
| 10 | 0823-429 | WEIGHT,CLUTCH-69G | 1 | $24.77 | |
| 11 | 0823-500 | SPRING, DRIVE COMP-BLK 0482_51/162 | 1 | $19.25 | |
| 12 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 | |
| 13 | 0826-159 | BOLT, DRIVE CLUTCH | 1 | $27.95 | |
| 14 | 0823-496 | BELT, DRIVE | 1 | $155.95 | |
| 15 | 0826-158 | BOLT, DRIVEN CLUTCH | 1 | $2.75 | |
| 16 | 0828-133 | WASHER, DRIVEN CLUTCH | 1 | $4.68 | |
| 17 | 0828-137 | SHIM,12.573X24.511X0.254 | 1 | $5.78 | |
| 17 | 0828-134 | SHIM, 12.573 x 24.511 x 0.508 | 1 | $10.97 | |
| 18 | 0823-461 | CLUTCH,INVERTED TIED SECOND-ASSY (8.91") | 1 | $553.95 | |
| 19 | 0823-404 | RING,RETAINING CONSTANT SEC INT,CFH-62 | 1 | $8.21 | |
| 20 | 0823-405 | WASHER,OFFSET THRUST-.990X2.43X.120 | 1 | $16.49 | |
| 21 | 0823-406 | SHIM-38X62X1.50 | 1 | $13.73 | |
| 22 | 0823-459 | SHEAVE,STAT SECONDARY-SUBASSY (8.91") | 1 | $168.95 | |
| 23 | 0823-460 | SHEAVE,MOVEABLE SECONDARY-SUBASSY (8.91" | 1 | $165.95 | |
| 24 | 0823-410 | PIN,ROLLER | 1 | $30.95 | |
| 25 | 0823-409 | R/B 0648-700 | 1 | $7.95 | |
| 26 | 0823-462 | ROLLER,CLUTCH-1.135 X .550 | 1 | $33.95 | |
| 27 | 0823-407 | PIN,SPRING SLOTTED-.125X.625 | 1 | $5.51 | |
| 28 | 0823-411 | SPRING, DRIVEN COMP-BLK 0404_105/163 | 1 | $29.95 | |
| 29 | 0823-412 | SPIDER,INSERT DAMPENER-CAST | 1 | $42.95 | |
| 30 | 0823-413 | DAMPENER,SPIDER | 1 | $29.95 | |
| 31 | 0823-414 | SPIDER,OUTER DAMPENER-MACHINED | 1 | $68.95 | |
| 32 | 0823-417 | ROLLER,CLUTCH-1.204 OD X .615 | 1 | $17.87 | |
| 33 | 0823-416 | WASHER,THRUST-.446X.88X.025 | 1 | $6.34 | |
| 34 | 0823-415 | RING,RETAINING E-RING EXTERNAL-.438 | 1 | $5.51 | |
| 35 | 0823-418 | ASSY,CAM INVETD-9.5" 56-60FR BA-150-50 | 1 | $144.95 | |
| 36 | 0823-419 | SCREW,TORX THD. FORM PAN HD-M6X1X16 | 1 | $10.97 |
