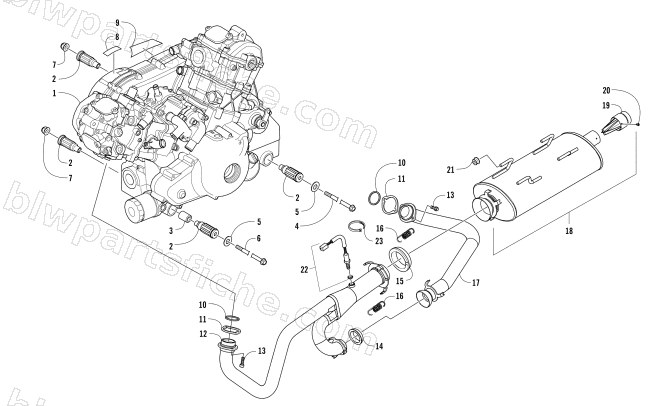

ENGINE AND EXHAUST
2016 WILDCAT 4X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0801-091 | MOUNT,RUBBER-ENGINE | 1 | $37.95 | |
| 3 | 0801-128 | SPACER,ENGINE MOUNT,L31 | 1 | $13.73 | |
| 4 | 0423-451 | SCREW,CAP-HFH M10X1.25X190 CL10.9 Z&Y | 1 | $5.95 | |
| 5 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 6 | 0423-734 | SCREW,CAP HFH M10-1.25X220 | 1 | $22.01 | |
| 7 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 8 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 9 | 3411-555 | DECAL,RAPID RESPONSE | 1 | $7.95 | |
| 10 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 11 | 0412-636 | SPACER,EXHAUST FLANGE | 1 | $10.97 | |
| 12 | 0512-810 | PIPE,EXHAUST-FRONT-COATED CERAMIC | 1 | $1,178.95 | |
| 13 | 1423-300 | SCREW,CAP-FERRY-M8X1.25X25 CL 8.8 Z | 1 | $3.85 | |
| 14 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 15 | 2612-615 | GASKET,EXHAUST-HEADPIPE | 1 | $32.95 | |
| 16 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 17 | 0512-811 | PIPE,EXHAUST-REAR-COATED CERAMIC | 1 | $383.95 | |
| 19 | 0512-832 | SPARK ARRESTER-COATED | 1 | $135.95 | |
| 20 | 1423-323 | SCREW,#8-1/2" TAPPING TYPE A | 1 | $0.26 | |
| 21 | 0412-544 | GROMMET,EXHAUST HANGER | 1 | $3.30 | |
| 22 | 0630-302 | R/B 0430-135 | 1 | $162.95 | |
| 23 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
