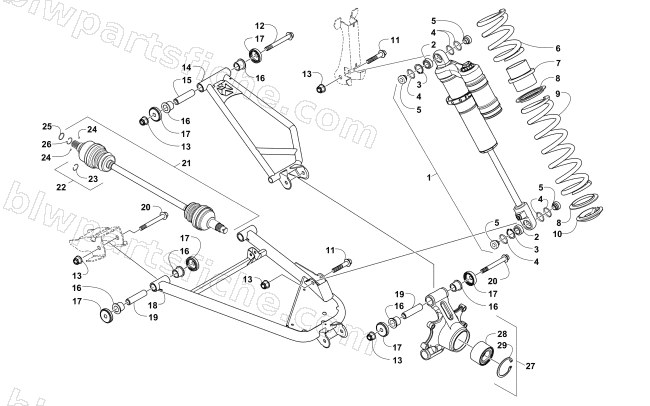

2016 Arctic Cat WILDCAT SPORT LIMITED EPS — REAR SUSPENSION ASSEMBLY
2016 WILDCAT SPORT LIMITED EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0404-481 | R/B 0404-605 | 1 | $1,169.95 | |
| 6 | 0404-482 | SPRING, REAR TENDER-BLK | 1 | $26.95 | |
| 7 | 0504-989 | R/B 1504-385 | 1 | $160.95 | |
| 8 | 0404-417 | SPACER,SPRING 2.5" ID | 1 | $29.95 | |
| 10 | 0403-415 | RETAINER,SPRING 2.0" BODY | 1 | $26.95 | |
| 11 | 8409-055 | SCREW,CAP-HFH M10X1.25X55 CL10.9 Z&Y | 1 | $4.13 | |
| 12 | 1423-266 | SCREW,CAP-HFH M10-1.25X155 | 1 | $6.47 | |
| 15 | 0404-503 | SLEEVE,FRONT SUSPENSION-UPPER | 1 | $54.95 | |
| 16 | 2402-077 | BEARING, FLANGE-18 ID X 26 OD X 21 | 1 | $16.49 | |
| 17 | 1423-287 | SEAL,SUSPENSION | 1 | $12.35 | |
| 19 | 0404-501 | SLEEVE,REAR SUSPENSION-LOWER | 1 | $23.39 | |
| 20 | 8413-090 | SCREW,CAP-HFH M10X1.25X90 CL10.9 SILV | 1 | $3.85 | |
| 22 | 2436-112 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 24 | 1402-884 | PIN,TRANSFER,LONG-COUPLER AXLE | 1 | $1.64 | |
| 25 | 1402-963 | O-RING,H-SHAFT-HT-31.75MM ID X 1.78MM | 1 | $5.95 | |
| 26 | 1402-890 | CIRCLIP,25MM | 1 | $5.09 | |
| 27 | 1504-066 | KNUCKLE, REAR-ASSY-SPORT | 1 | $292.95 | |
| 28 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 29 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
