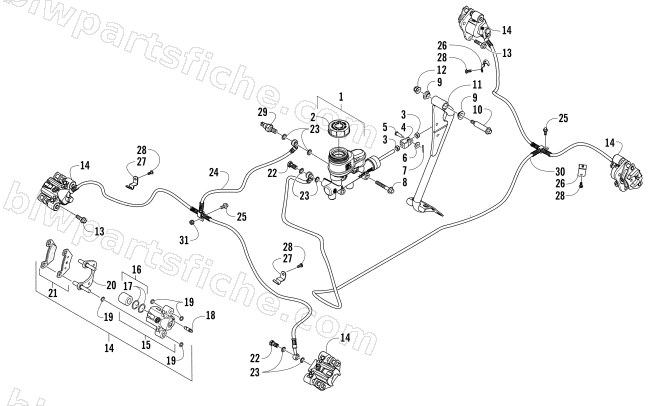

HYDRAULIC BRAKE ASSEMBLY
2016 WILDCAT TRAIL SE EPS /
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-043 | CYLINDER,MASTER BRAKE SIDEWINDER II-ASSY | 1 | $235.95 | |
| 2 | 2502-044 | KIT,SERVICE CAP-TANDEM MC SIDEWINDER II | 1 | $53.95 | |
| 3 | 0402-592 | NUT, JAM,M8 X 1.25 | 1 | $0.95 | |
| 4 | 1402-520 | CLEVIS | 1 | $47.95 | |
| 5 | 1423-252 | PIN,CLEVIS-6.75 DIA X 20.2 L Z&B | 1 | $6.20 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 9 | 2402-213 | BUSHING (.5 ID X .594 OD X .25 L) | 1 | $2.33 | |
| 10 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 11 | 2502-102 | PEDAL,BRAKE-BLACK-MACH | 1 | $74.95 | |
| 12 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 14 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 14 | 1436-423 | R/B 2502-575 | 1 | $432.95 | |
| 15 | 1436-160 | KIT-HOUSING,PISTONS,SEALS,BLEADER-RH | 1 | $266.95 | |
| 15 | 1436-161 | KIT-HOUSING,PISTONS,SEALS,BLEADER-LH | 1 | $268.95 | |
| 16 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 18 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 19 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 20 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 21 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 22 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 23 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 24 | 2402-125 | R/B 2402-423 | 1 | $200.95 | |
| 25 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 26 | 0403-257 | BRACKET,BRAKE LINE - 1" OD | 1 | $2.06 | |
| 27 | 2402-149 | CLIP,BRAKE HOSE | 1 | $42.95 | |
| 28 | 0423-946 | SCREW,SELF TAP-TSPNH-M5X0.8X12 BLK | 1 | $0.68 | |
| 29 | 3313-239 | SWITCH-BRAKE PRESSURE-BANJO | 1 | $54.95 | |
| 30 | 2402-124 | R/B 2402-424 | 1 | $298.95 | |
| 31 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 |
