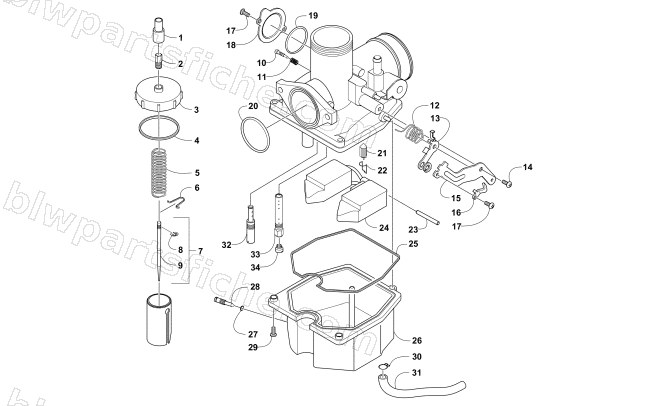

CARBURETOR ASSEMBLY
2017 150 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3306-773 | CARBURETOR ASSY | 1 | $421.95 | |
| 1 | 3305-059 | CABLE SEALING CAP | 1 | $2.75 | |
| 4 | 3304-217 | TOP GASKET | 1 | $5.92 | |
| 5 | 3306-431 | COMPR SPG | 1 | $47.95 | |
| 6 | 3304-240 | BAR CLIP | 1 | $4.13 | |
| 7 | 3306-430 | THROTTLE VALVE ASSY | 1 | $79.95 | |
| 8 | 3304-454 | NEEDLE CLIP PLATE | 1 | $2.33 | |
| 9 | 3304-456 | NEEDLE JET | 1 | $23.39 | |
| 10 | 3304-455 | STOP SCREW | 1 | $4.13 | |
| 11 | 3304-232 | COMPR SPG | 1 | $0.95 | |
| 12 | 3305-057 | TORSION SPG | 1 | $2.19 | |
| 13 | 3305-053 | CHOKE LEVER | 1 | $10.97 | |
| 14 | 3304-429 | SCREW WASH 5*12 | 1 | $0.81 | |
| 16 | 3306-907 | WIRE PLATE (CLAMP) | 1 | $4.13 | |
| 17 | 5507-117 | SCREW | 1 | $1.23 | |
| 20 | 3304-238 | O-RING | 1 | $2.33 | |
| 21 | 3304-242 | FLOAT VALVE COMP | 1 | $16.49 | |
| 22 | 3304-249 | SPECIAL CLIP | 1 | $4.13 | |
| 23 | 3304-451 | ARM PIN | 1 | $2.33 | |
| 24 | 3304-444 | FLOAT COMP | 1 | $30.95 | |
| 25 | 3304-219 | FLOAT CHAMBER GASKET | 1 | $3.02 | |
| 26 | 3304-220 | CHAMBER,FLOAT-ASSEMBLY | 1 | $47.95 | |
| 27 | 3304-239 | O-RING | 1 | $1.78 | |
| 28 | 3304-243 | DRAIN SCREW PAN | 1 | $5.37 | |
| 29 | 3304-428 | SCREW WASHER | 1 | $1.50 | |
| 30 | 3304-452 | TUBE CLIP | 1 | $1.37 | |
| 31 | 3305-922 | TUBE SET | 1 | $3.16 | |
| 32 | 3305-050 | SLOW JET | 1 | $20.63 | |
| 33 | 3304-447 | NEEDLE JET HOLDER | 1 | $20.63 | |
| 34 | 3304-441 | MAIN JET #98 | 1 | $13.73 |
