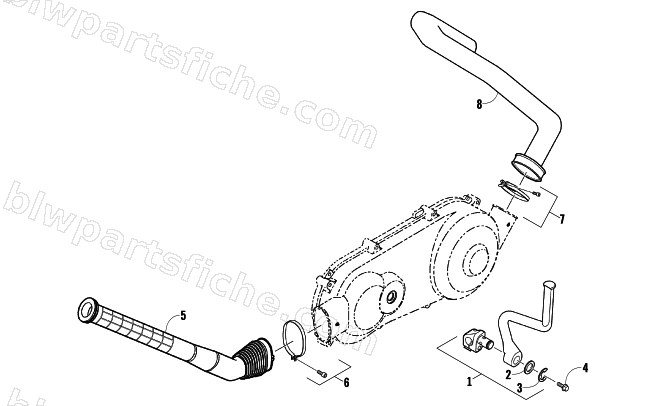

KICK STARTER AND COOLING DUCT ASSEMBLY
2017 150 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-549 | ARM ASSY KICK STARTER | 1 | $54.95 | |
| 2 | 3305-195 | WASHER PLAIN 13MM | 1 | $0.81 | |
| 3 | 3305-247 | E-RING 10mm | 1 | $1.78 | |
| 4 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 | |
| 5 | 3305-235 | DUCT L COVER | 1 | $23.39 | |
| 6 | 3303-635 | BAND L COVER DUCT | 1 | $5.37 | |
| 7 | 3303-636 | BAND L COVER | 1 | $5.92 | |
| 8 | 3305-234 | DUCT B L COVER | 1 | $37.95 |
