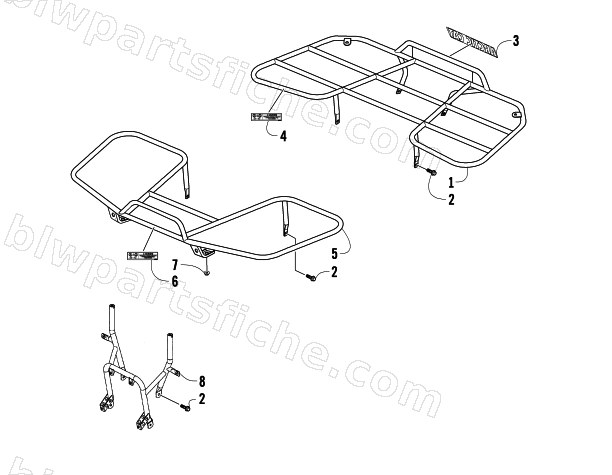

2017 Arctic Cat 150 UTILITY — RACKS AND BUMPER ASSEMBLY
2017 150 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-706 | RR CARRIER LUGGAGE | 1 | $309.95 | |
| 2 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 3 | 2411-465 | DECAL,"ARCTIC CAT" | 1 | $5.65 | |
| 4 | 1411-444 | DECAL,WARNING-RACK(25 LB.) | 1 | $5.65 | |
| 5 | 3305-707 | FRONT CARRIER LUGGAGE | 1 | $212.95 | |
| 6 | 1411-201 | DECAL,WARNING-RACK(50 LB.) | 1 | $6.47 | |
| 7 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 8 | 3305-708 | PIPE COMP FR BUMPER | 1 | $260.95 |
