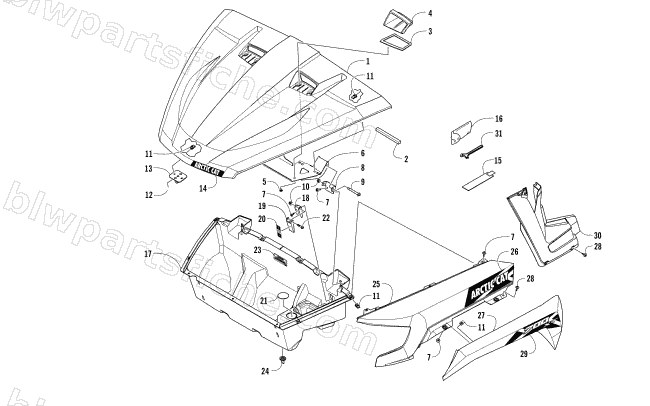

2017 Arctic Cat 700 HDX XT — HOOD/FRONT STORAGE AND SIDE PANEL ASSEMBLY
2017 700 HDX XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-973 | PANEL,HOOD - BLK(S) | 1 | $429.95 | |
| 1 | 5506-972 | PANEL,HOOD-TT CAMO | 1 | $1,115.95 | |
| 2 | 4406-886 | SEAL,HOOD | 1 | $6.89 | |
| 4 | 4406-620 | HOOD SCOOP, RH | 1 | $16.49 | |
| 4 | 4406-621 | HOOD SCOOP, LH | 1 | $16.49 | |
| 5 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 6 | 7506-173 | HOOD,HINGE-PTD BLK | 1 | $156.95 | |
| 7 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 9 | 1423-289 | SCREW,SHOULDER M6 X 1.0(8D X 60L) | 1 | $8.21 | |
| 11 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 12 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 13 | 5506-906 | HOOK, HOOD LATCH, WELDT | 1 | $19.25 | |
| 14 | 4411-570 | DECAL,HOOD-FRONT (ARCTIC CAT) | 1 | $17.87 | |
| 15 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 16 | 2516-863 | KIT,TOOL-HDX | 1 | $69.95 | |
| 17 | 4406-615 | BOX,FRONT STORAGE | 1 | $122.95 | |
| 18 | 4406-696 | R/B 8506-839 | 1 | $6.95 | |
| 19 | 4406-829 | R/B 8506-840 | 1 | $7.95 | |
| 20 | 4411-970 | DECAL,HOOD PROP | 1 | $4.95 | |
| 21 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 22 | 1423-288 | SCREW,SHOULDER M6 X 1.0(8D X 35L) | 1 | $17.87 | |
| 23 | 4411-553 | DECAL,CAUTION LOAD CAPACITY (25LB) | 1 | $3.30 | |
| 24 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 25 | 5506-936 | FENDER, FR RH INNER-BLK (S) | 1 | $163.95 | |
| 25 | 5506-937 | FENDER, FR LH INNER-BLK (S) | 1 | $163.95 | |
| 27 | 5506-954 | FENDER, FR RH OUTER-RED (S) | 1 | $148.95 | |
| 27 | 5506-955 | FENDER, FR LH OUTER-RED (S) | 1 | $148.95 | |
| 27 | 5506-938 | FENDER, FR RH OUTER-BLK (S) | 1 | $148.95 | |
| 27 | 5506-939 | FENDER, FR LH OUTER-BLK (S) | 1 | $148.95 | |
| 27 | 4406-810 | FENDER,FR RH OUTER-TT CAMO | 1 | $405.95 | |
| 27 | 4406-811 | FENDER,FR LH OUTER-TT CAMO | 1 | $405.95 | |
| 28 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 30 | 4406-610 | PANEL,SIDE-FR-RH | 1 | $42.95 | |
| 30 | 4406-611 | PANEL,SIDE-FR-LH | 1 | $42.95 | |
| 31 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
