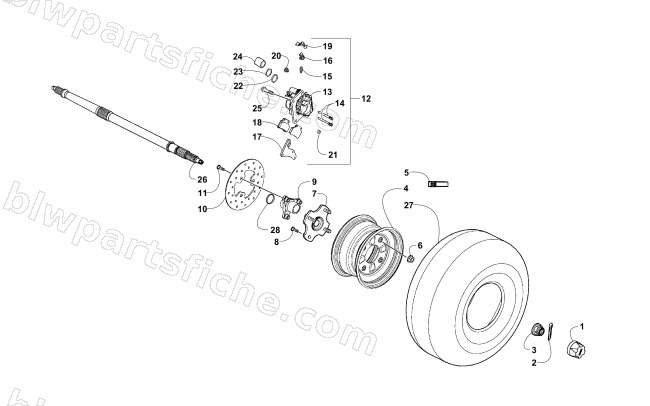

2017 Arctic Cat ALTERRA 300 — REAR WHEELS, AXLE, AND BRAKE ASSEMBLY
2017 ALTERRA 300
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-931 | CAP WHEEL | 1 | $10.97 | |
| 2 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 4 | 3306-886 | RIM COMP RR WHEEL | 1 | $100.95 | |
| 5 | 3304-562 | VALVE RIM (TR412) | 1 | $12.35 | |
| 6 | 3304-028 | NUT WHEEL | 1 | $2.61 | |
| 7 | 3306-749 | HUB ASSY RR WHEEL (LEFT SIDE) | 1 | $102.95 | |
| 7 | 3304-296 | CONNECTOR RR WHEEL | 1 | $90.95 | |
| 8 | 3304-014 | BOLT CONNECTOR | 1 | $3.02 | |
| 9 | 3303-893 | HUB BRAKE DISK | 1 | $169.95 | |
| 10 | 3303-913 | DISK FR BRK | 1 | $112.95 | |
| 11 | 3304-015 | BOLT STEP HOLDER 8*24 | 1 | $2.33 | |
| 12 | 3306-205 | CALIPER ASSY RR | 1 | $365.95 | |
| 12 | 3306-206 | CALIPER ASSY RR | 1 | $292.95 | |
| 14 | 3304-326 | PIN HANGER | 1 | $6.89 | |
| 15 | 3304-302 | SCREW BLEEDER | 1 | $3.30 | |
| 16 | 3304-303 | CAP BLEEDER | 1 | $3.02 | |
| 17 | 3303-911 | BRACKET RR | 1 | $58.95 | |
| 18 | 3303-908 | PAD SET | 1 | $58.95 | |
| 19 | 3304-315 | SPRING PAD | 1 | $4.82 | |
| 20 | 3304-322 | BOOT A | 1 | $3.16 | |
| 21 | 3304-329 | BUSH PIN | 1 | $5.37 | |
| 22 | 3305-380 | SEAL PISTON (FOOT BRAKE) | 1 | $16.49 | |
| 22 | 3306-191 | SEAL PISTON | 1 | $16.49 | |
| 23 | 3305-377 | DUST SEAL (FOOT BRAKE) | 1 | $4.13 | |
| 23 | 3303-910 | DUST SEAL (HAND BRAKE) | 1 | $10.97 | |
| 24 | 3304-314 | PISTON (FOOT BRAKE) | 1 | $58.95 | |
| 24 | 3303-909 | PISTON, CALIPER (HAND BRAKE) | 1 | $27.95 | |
| 25 | 3304-565 | BOLT FLANGE 8*20 | 1 | $1.50 | |
| 27 | 3307-799 | TIRE ASSY RR(AT22*10-10) | 1 | $223.95 |
