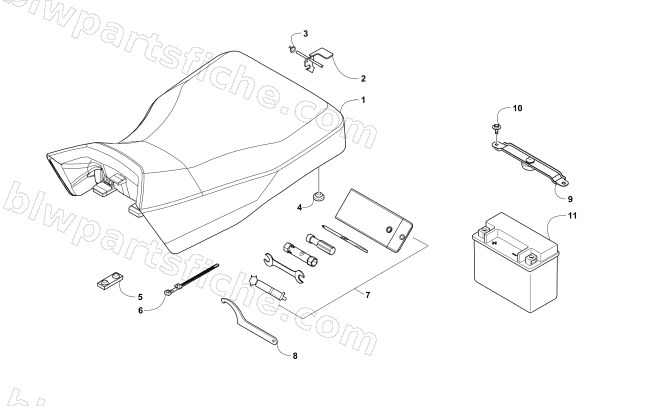

2017 Arctic Cat ALTERRA 300 — SEAT, BATTERY, AND TOOL KIT ASSEMBLIES
2017 ALTERRA 300
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3307-800 | SEAT ASSY | 1 | $291.95 | |
| 2 | 1506-156 | LATCH,SEAT-WELDMENT | 1 | $30.95 | |
| 3 | 1406-592 | SPRING,LATCH | 1 | $1.78 | |
| 4 | 3306-470 | RUBBER SEAT CUSHION | 1 | $1.92 | |
| 5 | 3306-449 | SW ASSY FR STOP | 1 | $30.95 | |
| 7 | 3304-648 | TOOL SET | 1 | $47.95 | |
| 8 | 1441-797 | WRENCH,SPANNER | 1 | $0.00 | |
| 9 | 3307-812 | STAY BATTERY | 1 | $12.35 | |
| 10 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 11 | 3304-275 | BATTERY YTX12-BS | 1 | $163.95 |
