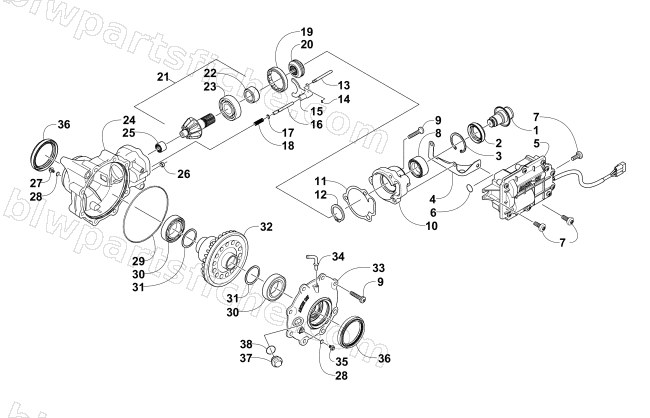

FRONT DRIVE GEARCASE ASSEMBLY
2017 ALTERRA 400
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3306-265 | GEARCASE,FRONT (3.1)-ASSEMBLY | 1 | $1,434.95 | |
| 1 | 3306-047 | SHAFT INPUT ASSEMBLY | 1 | $94.95 | |
| 2 | 3323-239 | SEAL | 1 | $5.65 | |
| 3 | 3306-046 | RING RETAINING | 1 | $4.54 | |
| 4 | 3323-241 | BRACKET,ACTUATOR-WELD'T | 1 | $12.35 | |
| 5 | 3306-264 | 2X 4X ACTUATOR ASM | 1 | $493.95 | |
| 6 | 3313-792 | O-RING ACTUATOR | 1 | $1.78 | |
| 7 | 3313-797 | BOLT FLANGE 6*15 (C) | 1 | $12.35 | |
| 8 | 3323-240 | BEARING,BALL-DOUBLE ROW | 1 | $94.95 | |
| 9 | 3305-513 | BOLT FLANGE 8*40(G) | 1 | $1.78 | |
| 10 | 3323-238 | HOUSING,PINION-MACH | 1 | $50.95 | |
| 11 | 3323-234 | GASKET,FLANGE | 1 | $3.16 | |
| 12 | 3306-045 | RING RETAINING | 1 | $3.44 | |
| 13 | 3323-235 | PUSHROD,SELECTOR | 1 | $5.65 | |
| 14 | 3313-791 | RING RETAINING (4MM EXT) | 1 | $1.50 | |
| 15 | 3323-236 | FORK,SELECTOR | 1 | $50.95 | |
| 16 | 3323-233 | SHAFT,SHUTTLE | 1 | $5.65 | |
| 17 | 3313-790 | O-RING 3*2MM | 1 | $1.23 | |
| 18 | 3313-789 | SPRING RETURN 4WD | 1 | $1.78 | |
| 19 | 3313-788 | COLLAR LOCK M64*1.5LH | 1 | $42.95 | |
| 20 | 3323-232 | COUPLER,DRIVE | 1 | $37.95 | |
| 21 | 3306-039 | PINION(11 TOOTH)-ASSEMBLY | 1 | $196.95 | |
| 22 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 23 | 3306-040 | BRG BALL RADIAL 6305 | 1 | $26.95 | |
| 24 | 3313-793 | HOUSING GEARCASE-FRT MACH | 1 | $371.95 | |
| 25 | 3306-038 | BEARING NEEDLE | 1 | $47.95 | |
| 26 | 3306-048 | PIN DOWEL | 1 | $4.54 | |
| 27 | 3306-027 | PLUG DRAIN MAG | 1 | $20.63 | |
| 28 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 29 | 3306-030 | O-RING 150*2MM | 1 | $3.16 | |
| 30 | 3306-801 | BEARING BALL | 1 | $64.95 | |
| 31 | 3306-132 | SHIM 41*49*1.0 | 1 | $5.65 | |
| 31 | 3306-133 | SHIM 41*49*1.1 | 1 | $5.65 | |
| 31 | 3306-134 | SHIM 41*49*1.2 | 1 | $5.65 | |
| 31 | 3306-135 | SHIM 41*49*1.3 | 1 | $5.65 | |
| 31 | 3306-136 | SHIM 41*49*1.4 | 1 | $24.77 | |
| 31 | 3306-137 | SHIM 41*49*1.5 | 1 | $5.65 | |
| 31 | 3306-138 | SHIM 41*49*1.6 | 1 | $5.65 | |
| 31 | 3306-139 | SHIM 41*49*1.7 | 1 | $5.65 | |
| 32 | 3313-794 | GEAR(34 TOOTH 3.1)-WELDMENT | 1 | $638.95 | |
| 33 | 3313-795 | COVER GEARCASE-FR MACH | 1 | $69.95 | |
| 34 | 3306-034 | BARB 90 DEG | 1 | $6.89 | |
| 35 | 3306-036 | PLUG OIL LEVEL | 1 | $10.97 | |
| 36 | 3306-025 | OIL SEAL 48*84*9 | 1 | $50.95 | |
| 37 | 3306-035 | PLUG FILL | 1 | $30.95 | |
| 38 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 |
