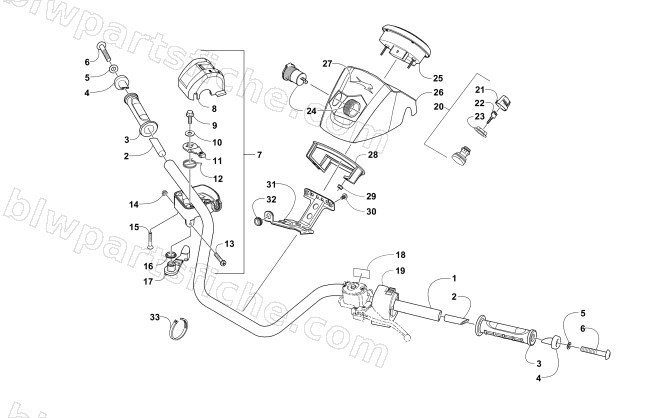

2017 Arctic Cat ALTERRA 400 — HANDLEBAR ASSEMBLY
2017 ALTERRA 400
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-580 | HANDLEBAR,BLACK | 1 | $114.95 | |
| 2 | 0405-148 | R/B 3323-054 | 1 | $18.95 | |
| 3 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 4 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 5 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 6 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 7 | 3306-276 | THROTTLE / SWITCH-ASSEMBLY | 1 | $196.95 | |
| 9 | 3305-344 | BOLT FLANGE 6*16 | 1 | $1.09 | |
| 10 | 3313-739 | WASHER,PLAIN 13MM | 1 | $1.50 | |
| 11 | 3313-838 | BAR THROTTLE | 1 | $4.95 | |
| 12 | 3313-839 | SPRING THROTTLE | 1 | $2.88 | |
| 13 | 3313-740 | SCREW,PAN 5X25(K) | 1 | $3.02 | |
| 14 | 3305-832 | NUT,HEX 5MM | 1 | $2.06 | |
| 15 | 3313-741 | SCREW,OVAL 5X30 | 1 | $1.78 | |
| 16 | 3313-841 | WATERPROOF COVER | 1 | $3.71 | |
| 17 | 3313-842 | LEVER THROTTLE | 1 | $54.95 | |
| 18 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 | |
| 19 | 3313-428 | CONTROL,HANDLE-LEFT(W/ OVERRIDE) | 1 | $148.95 | |
| 20 | 3313-439 | SWITCH,IGNITION-OFF/ON/LIGHTS | 1 | $64.95 | |
| 21 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 22 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 23 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 24 | 3313-468 | OUTLET,ACCESSORY-12V DC | 1 | $33.95 | |
| 25 | 0520-137 | GAUGE,LCD (012 350) | 1 | $525.95 | |
| 27 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 28 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 29 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 30 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 31 | 3306-277 | STAY,HANDLE COVER | 1 | $16.49 | |
| 32 | 3303-239 | RUBBER TAIL LIGHT | 1 | $1.64 | |
| 33 | 3303-839 | BAND WIRE HARNESS B1 | 1 | $2.33 |
