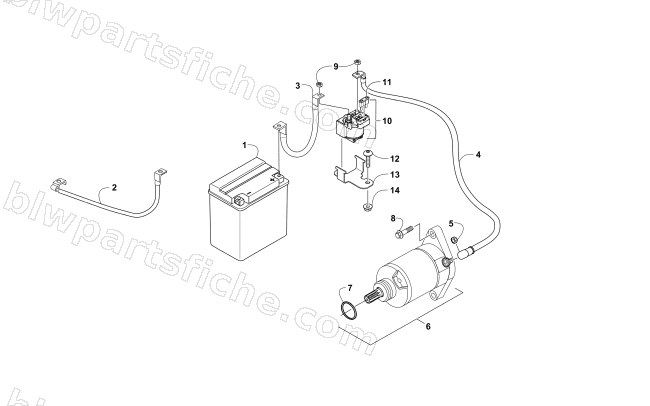

2017 Arctic Cat ALTERRA 500 — BATTERY AND STARTER ASSEMBLY
2017 ALTERRA 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-301 | BATTERY YTX20L-BS | 1 | $409.95 | |
| 5 | 3304-011 | NUT WASH 6MM | 1 | $0.81 | |
| 6 | 3305-954 | MOTOR UNIT STARTER | 1 | $324.95 | |
| 7 | 3304-104 | O-RING 24.4*3.1 | 1 | $1.95 | |
| 8 | 3305-946 | BOLT FLANGE SH 6*28 | 1 | $1.50 | |
| 9 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 10 | 3313-464 | RELAY,STARTER | 1 | $47.95 | |
| 11 | 3304-212 | BLADE FUSE 30A | 1 | $4.95 | |
| 12 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 13 | 3313-467 | BRACKET,MOUNTING-SOLENOID | 1 | $4.54 | |
| 14 | 3304-431 | NUT LOCK | 1 | $1.23 |
