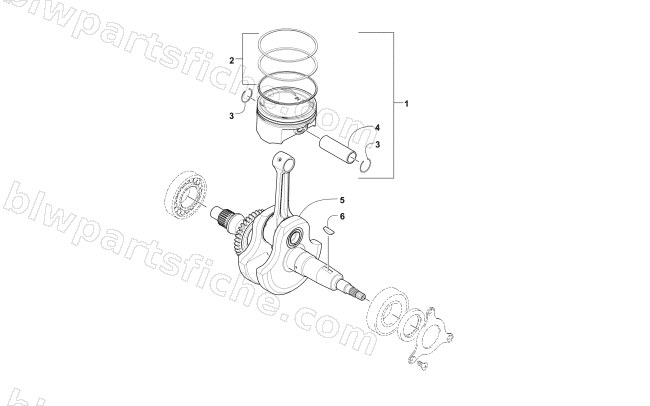

2017 Arctic Cat ALTERRA 500 — CRANKSHAFT AND PISTON ASSEMBLY
2017 ALTERRA 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0805-333 | PISTON SET (450) | 1 | $212.95 | |
| 2 | 0805-320 | RING SET,PISTON | 1 | $196.95 | |
| 3 | 0831-060 | CIRCLIP,PISTON PIN | 1 | $3.02 | |
| 4 | 0805-023 | PIN,PISTON | 1 | $37.95 | |
| 5 | 0805-013 | CRANKSHAFT ASSEMBLY | 1 | $1,010.95 | |
| 6 | 0829-039 | KEY WAY ACG | 1 | $3.57 |
