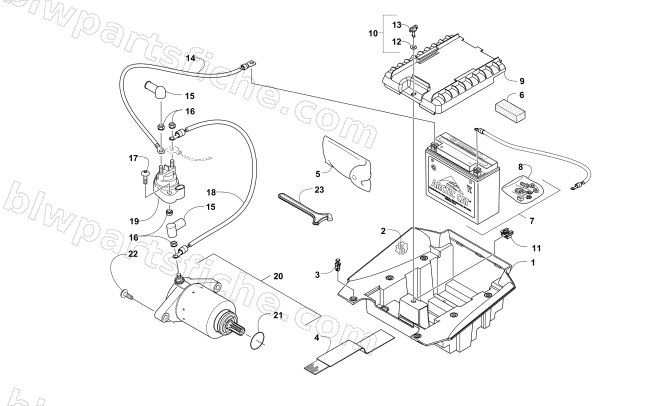

2017 Arctic Cat ALTERRA 700 XT EPS INERNATIONAL — BATTERY AND STARTER ASSEMBLY
2017 ALTERRA 700 XT EPS INERNATIONAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0412-847 | R/B 1412-107 | 1 | $26.95 | |
| 3 | 1423-276 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.23 | |
| 4 | 0444-291 | RETAINER,VELCRO (2" X 9") | 1 | $10.97 | |
| 5 | 4406-599 | KIT,TOOL | 1 | $85.95 | |
| 6 | 0417-016 | PAD,BATTERY-0.75" | 1 | $2.33 | |
| 7 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 8 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 9 | 4406-525 | LID,BOX,BATTERY | 1 | $85.95 | |
| 10 | 1423-218 | FASTENER,QUARTER TURN - ASSEMBLY | 1 | $4.54 | |
| 11 | 1423-208 | RECEIVER,QUARTER TURN FASTENER | 1 | $1.95 | |
| 12 | 1423-209 | RETAINER,QUARTER TURN FASTENER | 1 | $0.95 | |
| 13 | 1423-207 | KNOB,QUARTER TURN FASTENER | 1 | $2.75 | |
| 14 | 0445-049 | CABLE,BATTERY-SOLENOID (18" RED #6) | 1 | $27.95 | |
| 15 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 16 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 17 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 18 | 0445-110 | CABLE,BATTERY-SOLENOID-22" RED #6 | 1 | $33.95 | |
| 19 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 20 | 0825-024 | MOTOR,STARTER-ENGINE (PD 11.25) | 1 | $268.95 | |
| 21 | 0830-228 | O-RING,33.5MMX3MM | 1 | $5.09 | |
| 22 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 23 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
