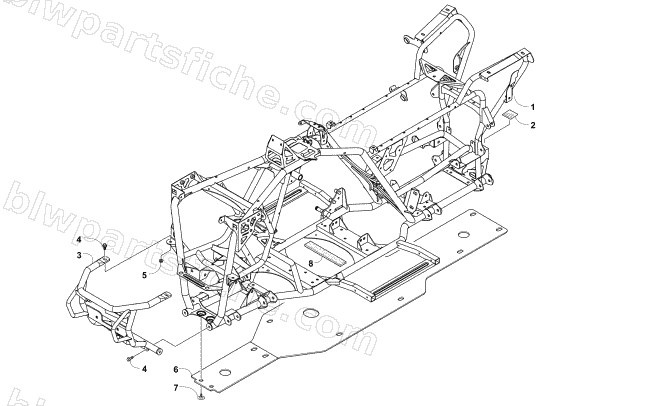

2017 Arctic Cat ALTERRA 700 XT EPS INERNATIONAL — FRAME AND RELATED PARTS
2017 ALTERRA 700 XT EPS INERNATIONAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 4411-550 | DECAL,WARNING-TOWING-1050 LB | 1 | $4.95 | |
| 3 | 5506-625 | BUMPER,FRONT FRAME-PTD BLK | 1 | $390.95 | |
| 4 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 5 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 6 | 4406-582 | PANEL,SKID | 1 | $129.95 | |
| 7 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 8 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 |
