2017 Arctic Cat ALTERRA 700 XT EPS INERNATIONAL — FRONT RACK AND SIDE PANEL ASSEMBLIES

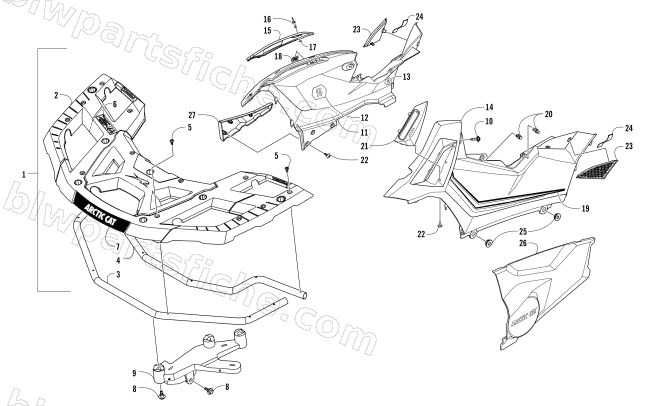

2017 ALTERRA 700 XT EPS INERNATIONAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-840 | RACK-MOLDED-FRONT-ASSY | 1 | $324.95 | |
| 2 | 5506-672 | RACK,W/OVERMOLD | 1 | $224.95 | |
| 3 | 5506-671 | TUBE,RACK-OUTER PERIMETER-PTD BLK | 1 | $54.95 | |
| 4 | 5506-592 | TUBE,RACK-INNER PERIMETER-PTD BLK | 1 | $90.95 | |
| 5 | 1423-301 | SCREW,MACH-TSTRH M6-1.0X10 CL8.8 BLK W/ | 1 | $0.95 | |
| 6 | 4411-678 | DECAL,WARNING-FRONT RACK | 1 | $6.47 | |
| 7 | 4411-879 | DECAL,ARCTIC CAT-RACK | 1 | $16.49 | |
| 8 | 1423-280 | SCREW,SHOULDER-M8 X 12.7D X 12L | 1 | $3.85 | |
| 9 | 4406-626 | MOUNT,RACK FRONT-RH | 1 | $54.95 | |
| 9 | 4406-627 | MOUNT,RACK FRONT-LH | 1 | $54.95 | |
| 10 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 11 | 7506-048 | PANEL,SIDE-RH-VIBRANT RED MET-PTD-ASSY | 1 | $454.95 | |
| 12 | 0412-838 | R/B 1412-108 | 1 | $62.95 | |
| 13 | 0412-852 | R/B 1412-114 | 1 | $46.95 | |
| 14 | 5506-881 | PANEL,SIDE-LH-VIBRANT RED METALLIC-PTD | 1 | $405.95 | |
| 15 | 5506-921 | PANEL,PDM ACCESS-VIBRANT RED MET-PTD | 1 | $90.95 | |
| 16 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 17 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 18 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 20 | 1423-276 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.23 | |
| 21 | 2402-218 | GATE,SHIFT-AUTO-W/PARK | 1 | $6.89 | |
| 22 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 23 | 4406-710 | VENT,PLASTIC-RH | 1 | $4.13 | |
| 23 | 4406-711 | VENT,PLASTIC-LH | 1 | $4.13 | |
| 25 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 26 | 4406-579 | PANEL,ENGINE COVER-LH | 1 | $54.95 | |
| 27 | 4406-578 | PANEL,ENGINE COVER-RH (550/700) | 1 | $15.11 |
