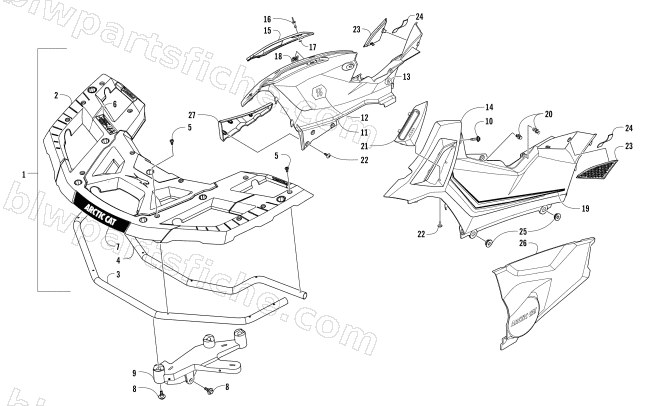

FRONT RACK AND SIDE PANEL ASSEMBLIES
2017 ALTERRA 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-840 | RACK-MOLDED-FRONT-ASSY | 1 | $324.95 | |
| 2 | 5506-672 | RACK,W/OVERMOLD | 1 | $224.95 | |
| 3 | 5506-671 | TUBE,RACK-OUTER PERIMETER-PTD BLK | 1 | $54.95 | |
| 4 | 5506-592 | TUBE,RACK-INNER PERIMETER-PTD BLK | 1 | $90.95 | |
| 5 | 1423-301 | SCREW,MACH-TSTRH M6-1.0X10 CL8.8 BLK W/ | 1 | $0.95 | |
| 6 | 4411-678 | DECAL,WARNING-FRONT RACK | 1 | $6.47 | |
| 7 | 4411-879 | DECAL,ARCTIC CAT-RACK | 1 | $16.49 | |
| 8 | 1423-280 | SCREW,SHOULDER-M8 X 12.7D X 12L | 1 | $3.85 | |
| 9 | 4406-626 | MOUNT,RACK FRONT-RH | 1 | $54.95 | |
| 9 | 4406-627 | MOUNT,RACK FRONT-LH | 1 | $54.95 | |
| 10 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 11 | 7506-018 | PANEL,SIDE-RH-RED-HDPE-ASSY | 1 | $129.95 | |
| 12 | 0412-838 | R/B 1412-108 | 1 | $62.95 | |
| 13 | 0412-852 | R/B 1412-114 | 1 | $46.95 | |
| 14 | 4406-761 | PANEL,SIDE-LH-RED-HDPE | 1 | $82.95 | |
| 15 | 4406-772 | PANEL,PDM ACCESS-RED-HDPE | 1 | $17.87 | |
| 16 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 17 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 18 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 20 | 1423-276 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.23 | |
| 21 | 2402-218 | GATE,SHIFT-AUTO-W/PARK | 1 | $6.89 | |
| 22 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 23 | 4406-710 | VENT,PLASTIC-RH | 1 | $4.13 | |
| 23 | 4406-711 | VENT,PLASTIC-LH | 1 | $4.13 | |
| 25 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 26 | 4406-579 | PANEL,ENGINE COVER-LH | 1 | $54.95 | |
| 27 | 4406-578 | PANEL,ENGINE COVER-RH (550/700) | 1 | $15.11 |
