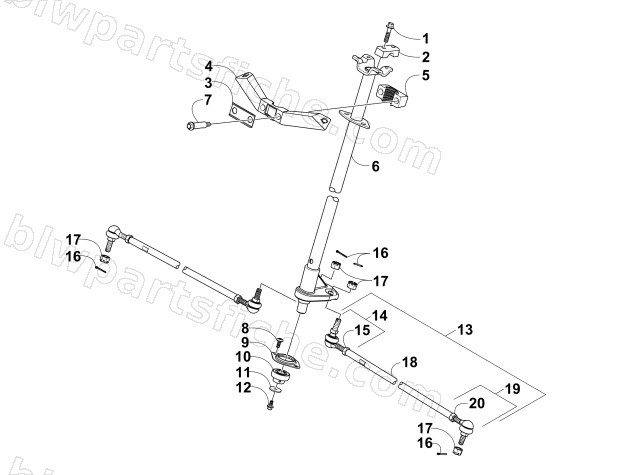

STEERING ASSEMBLY
2017 ALTERRA 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 Z&Y | 1 | $2.06 | |
| 2 | 0405-035 | CAP,STEERING ADJUSTER | 1 | $17.87 | |
| 3 | 0505-898 | CAP,HOUSING-BLACK | 1 | $16.49 | |
| 4 | 4406-787 | BRACKET,SUPPORT-CONSOLE | 1 | $20.63 | |
| 5 | 0405-259 | HOUSING,LOWER | 1 | $10.97 | |
| 6 | 0505-884 | POST,STEERING-PTD BLK | 1 | $114.95 | |
| 7 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 8 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 9 | 0405-550 | FLANGE,BEARING-TWO MTG HOLE | 1 | $4.95 | |
| 10 | 0405-549 | BEARING,LOW SPEED STEERING | 1 | $50.95 | |
| 11 | 8450-109 | WASHER,FLAT M6-6.87X25.4X2.32 Z&Y | 1 | $0.68 | |
| 12 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 13 | 0505-885 | ROD,TIE-ASSY | 1 | $64.95 | |
| 14 | 0505-875 | ROD END PKG,TIE ROD-LH THREAD | 1 | $54.95 | |
| 15 | 0423-013 | NUT,HEX M10-1.25(LH) Z&Y | 1 | $1.09 | |
| 16 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 17 | 0423-157 | NUT, TOP-LOCK | 1 | $0.95 | |
| 18 | 0405-521 | ROD,TIE | 1 | $42.95 | |
| 19 | 0405-502 | R/B 0505-874 | 1 | $54.95 | |
| 20 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 |
