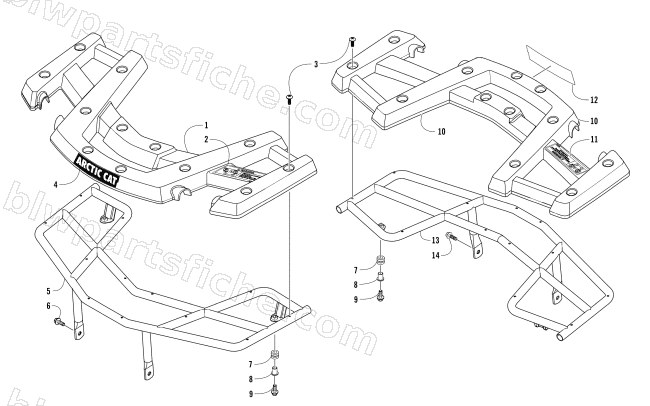

2017 Arctic Cat ALTERRA 90 — FRONT AND REAR RACK ASSEMBLY
2017 ALTERRA 90
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 6 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 7 | 3303-227 | RUBBER WIND SCREEN | 1 | $1.92 | |
| 8 | 3303-233 | COLLAR FLOOR | 1 | $2.33 | |
| 9 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 11 | 1411-317 | DECAL,WARNING-RACK(15 LB.) | 1 | $23.39 | |
| 14 | 3303-313 | BOLT WASH 6*16 | 1 | $1.09 |
