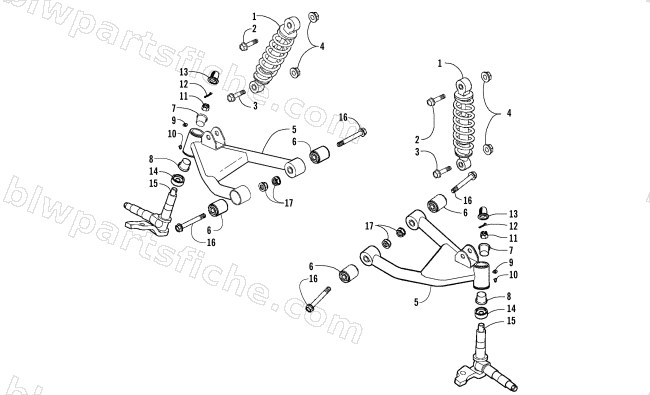

FRONT SUSPENSION ASSEMBLY
2017 ALTERRA 90
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-856 | CUSHION ASSY FR (BLACK) | 1 | $150.95 | |
| 2 | 3307-068 | BOLT FLANGE 10*40 | 1 | $5.09 | |
| 3 | 3303-309 | BOLT HEX 10*40 | 1 | $3.57 | |
| 4 | 3307-058 | NUT FLANGE 10MM | 1 | $5.09 | |
| 5 | 3306-854 | ARM ASSY R SWING (BLACK) | 1 | $108.95 | |
| 5 | 3306-855 | ARM ASSY L SWING (BLACK) | 1 | $108.95 | |
| 6 | 3303-216 | BUSH SWING ARM | 1 | $12.35 | |
| 7 | 3303-218 | BUSH SWING ARM UP | 1 | $12.35 | |
| 8 | 3303-217 | BUSH SWING ARM BOTTOM | 1 | $12.35 | |
| 9 | 3303-393 | NIPPLE GREASE | 1 | $6.75 | |
| 10 | 3303-394 | BOOT GREASE NIPPLE | 1 | $1.37 | |
| 11 | 3303-329 | NUT FLANGE CASTLE 10MM | 1 | $3.02 | |
| 12 | 3303-337 | PIN SPLIT 2.0*20 | 1 | $0.95 | |
| 13 | 3303-219 | CAP SWING ARM | 1 | $4.13 | |
| 14 | 3303-220 | SEAL SWING ARM | 1 | $4.40 | |
| 15 | 3303-178 | SHAFT R STEERING | 1 | $85.95 | |
| 15 | 3303-180 | SHAFT L STEERING | 1 | $85.95 | |
| 16 | 3304-595 | BOLT FLANGE 10*50 | 1 | $2.61 | |
| 17 | 3304-031 | NUT U 10MM | 1 | $2.61 |
