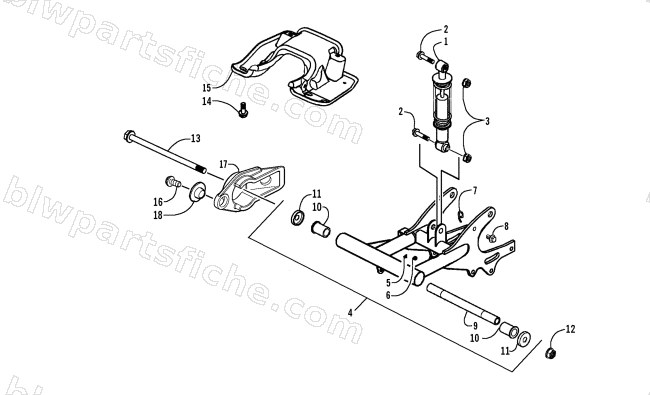

REAR SUSPENSION ASSEMBLY
2017 ALTERRA 90
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-857 | CUSH ASSY RR (BLACK) | 1 | $260.95 | |
| 2 | 3307-068 | BOLT FLANGE 10*40 | 1 | $5.09 | |
| 3 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 4 | 3305-858 | FORK,ASSY RR | 1 | $231.95 | |
| 5 | 3303-394 | BOOT GREASE NIPPLE | 1 | $1.37 | |
| 6 | 3303-393 | NIPPLE GREASE | 1 | $6.75 | |
| 7 | 3304-594 | CLAMPER BRAKE HOSE | 1 | $3.71 | |
| 8 | 3303-356 | BOLT FLANGE 6*10 | 1 | $0.81 | |
| 9 | 3303-189 | COLLAR RR FORK DIST | 1 | $20.63 | |
| 10 | 3303-191 | BUSH REAR FORK | 1 | $16.49 | |
| 11 | 3303-192 | CAP RR FORK DUST SEAL | 1 | $5.37 | |
| 12 | 3304-032 | NUT FLANGE 14MM | 1 | $6.34 | |
| 13 | 3303-150 | BOLT REAR FORK [AXLE] | 1 | $19.25 | |
| 14 | 3305-454 | BOLT-WASH 6X16(G) | 1 | $1.09 | |
| 15 | 3305-996 | GUARD ASSY REAR FORK | 1 | $50.95 | |
| 16 | 3304-690 | SCREW, TAPPING- 6*12 | 1 | $2.06 | |
| 17 | 3305-859 | SLIDER,CHAIN | 1 | $20.63 | |
| 18 | 3304-360 | COLLAR CHAIN SLIDER | 1 | $2.33 |
