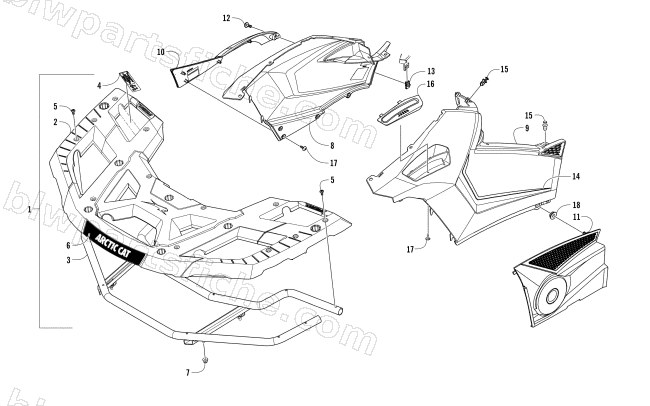

2017 Arctic Cat ALTERRA TRV 1000 XT EPS — FRONT RACK AND SIDE PANEL ASSEMBLIES
2017 ALTERRA TRV 1000 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7506-773 | RACK,FRONT-ASSEMBLY | 1 | $324.95 | |
| 2 | 5506-672 | RACK,W/OVERMOLD | 1 | $224.95 | |
| 4 | 4411-678 | DECAL,WARNING-FRONT RACK | 1 | $6.47 | |
| 5 | 1423-301 | SCREW,MACH-TSTRH M6-1.0X10 CL8.8 BLK W/ | 1 | $0.95 | |
| 6 | 4411-879 | DECAL,ARCTIC CAT-RACK | 1 | $16.49 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 12 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 13 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 15 | 1423-276 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.23 | |
| 17 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 18 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 |
