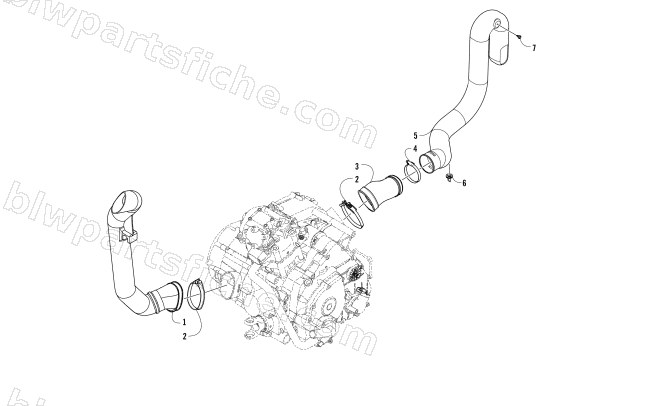

2017 Arctic Cat ALTERRA TRV 500 — CASE/BELT COOLING ASSEMBLY
2017 ALTERRA TRV 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 3 | 0413-231 | BOOT,DUCT-AIR OUT | 1 | $27.95 | |
| 4 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 5 | 0413-106 | DUCT,BELT COOLING-REAR | 1 | $58.95 | |
| 6 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 7 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 |
