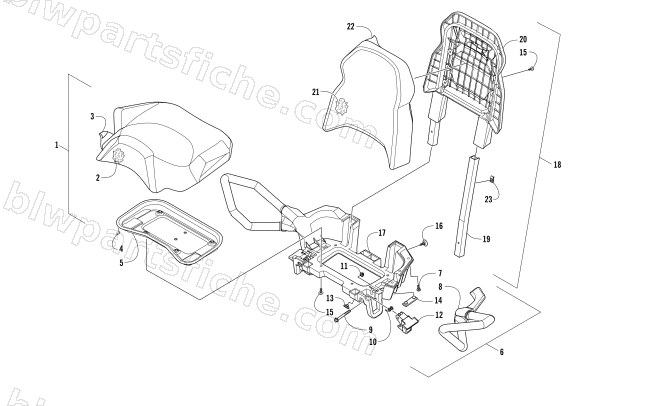

2017 Arctic Cat ALTERRA TRV 500 — PASSENGER SEAT AND BACKREST ASSEMBLY
2017 ALTERRA TRV 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0624-263 | STAPLE,S.S. 3/8"PKG OF 1,250 ARROW | 1 | $133.95 | |
| 5 | 0517-176 | PAN,SEAT BASE | 1 | $38.95 | |
| 7 | 1423-038 | SCREW,MACH-TSTRH M6X1.0X20 | 1 | $1.50 | |
| 9 | 8408-870 | SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y | 1 | $2.61 | |
| 11 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 14 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 15 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 16 | 1423-060 | SCREW,SHOULDER TSTRH M6X1.0X25 RIE BL | 1 | $5.51 | |
| 20 | 0517-175 | PAN,SEAT BACK | 1 | $75.95 | |
| 23 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 |
