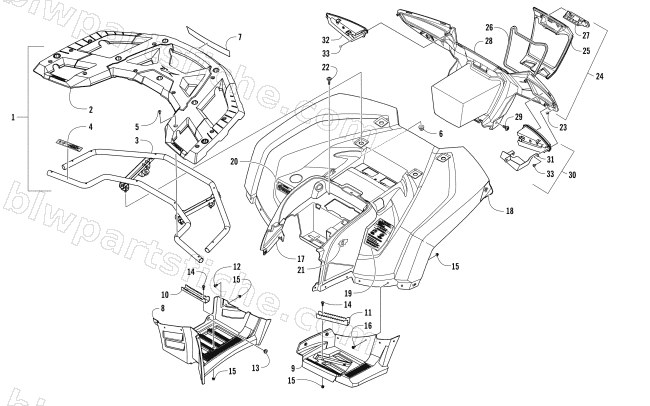

2017 Arctic Cat ALTERRA TRV 500 — REAR RACK, BODY PANEL, FOOTWELL, AND TAILLIGHT ASSEMBLIES
2017 ALTERRA TRV 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-841 | RACK,REAR-ASSY | 1 | $412.95 | |
| 2 | 5506-672 | RACK,W/OVERMOLD | 1 | $224.95 | |
| 3 | 7506-025 | R/B 7506-027 | 1 | $143.95 | |
| 4 | 4411-680 | DECAL,WARNING-REAR RACK | 1 | $4.95 | |
| 5 | 1423-301 | SCREW,MACH-TSTRH M6-1.0X10 CL8.8 BLK W/ | 1 | $0.95 | |
| 6 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 4506-156 | FOOTWELL,RTD-RH | 1 | $156.95 | |
| 9 | 2406-042 | FOOTWELL,REAR-RH | 1 | $105.95 | |
| 9 | 2406-043 | FOOTWELL,REAR-LH | 1 | $105.95 | |
| 10 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 12 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 13 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 14 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 16 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 18 | 4411-816 | REFLECTOR,REAR-RH | 1 | $10.97 | |
| 18 | 4411-817 | REFLECTOR,REAR-LH | 1 | $10.97 | |
| 22 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 23 | 1423-321 | CLIP,RETAINING | 1 | $0.54 | |
| 25 | 4406-583 | DOOR,BOX STORAGE-REAR | 1 | $29.95 | |
| 26 | 4406-839 | SEAL,DOOR-BOX STORAGE | 1 | $10.97 | |
| 27 | 4406-316 | LATCH,DOOR-PLASTIC | 1 | $26.95 | |
| 33 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 |
