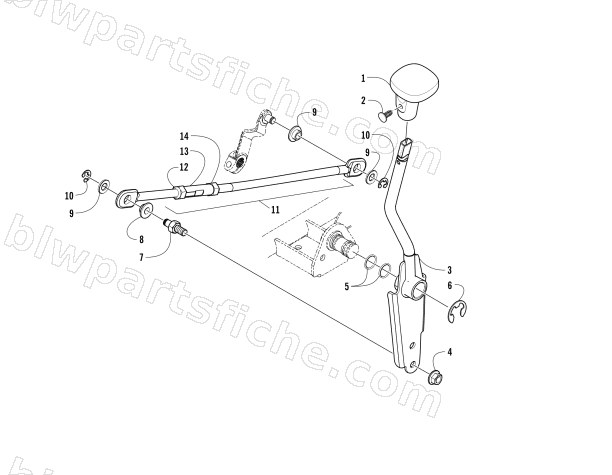

2017 Arctic Cat ALTERRA TRV 500 — SHIFT LEVER ASSEMBLY
2017 ALTERRA TRV 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0402-843 | KNOB,SHIFT | 1 | $16.49 | |
| 2 | 0423-345 | CLIP,PUSH | 1 | $0.95 | |
| 4 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 5 | 0423-299 | O-RING,-016 (5/8X3/4X1/16) | 1 | $1.23 | |
| 7 | 1402-621 | PIN,SHIFT LINKAGE MOUNT | 1 | $3.57 | |
| 8 | 0423-091 | BUSHING,SHIFT | 1 | $3.16 | |
| 9 | 0623-094 | WASHER, FLAT - 5/16 ID | 1 | $0.40 | |
| 10 | 0423-169 | E-RING,5/16-(.242 X.588 X.035) | 1 | $0.68 | |
| 12 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 13 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 |
