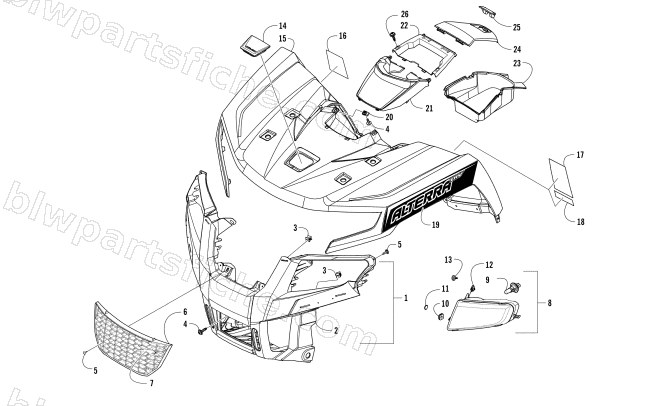

2017 Arctic Cat ALTERRA TRV 550 XT EPS — FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
2017 ALTERRA TRV 550 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 1423-321 | CLIP,RETAINING | 1 | $0.54 | |
| 4 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 5 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 6 | 4406-990 | GRILL,FRONT-151 ATV (13.5 mm TABS) | 1 | $20.63 | |
| 7 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 8 | 0509-102 | HEADLIGHT,HALOGEN/LED-RH (XR XT) | 1 | $169.95 | |
| 8 | 0509-103 | HEADLIGHT,HALOGEN/LED-LH (XR XT) | 1 | $169.95 | |
| 9 | 0409-182 | BULB,HEADLIGHT-H13 HALOGEN | 1 | $50.95 | |
| 10 | 4406-722 | GROMMET-RH | 1 | $2.88 | |
| 10 | 4406-723 | GROMMET-LH | 1 | $2.88 | |
| 11 | 1423-326 | O-RING,D:.116 ID: .924-EPDM (3-912) | 1 | $2.75 | |
| 12 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 13 | 2623-113 | SCREW,1" RND KNOB-M5X0.8X15MM LG | 1 | $3.71 | |
| 14 | 4406-784 | PLUG,ACCESS COOLING | 1 | $6.89 | |
| 17 | 2411-259 | DECAL,WARNING-TRV GENERAL 16 | 1 | $16.49 | |
| 18 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 20 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 26 | 1423-221 | SCREW, M6X1.0 DOG-POINT | 1 | $1.37 |
